134

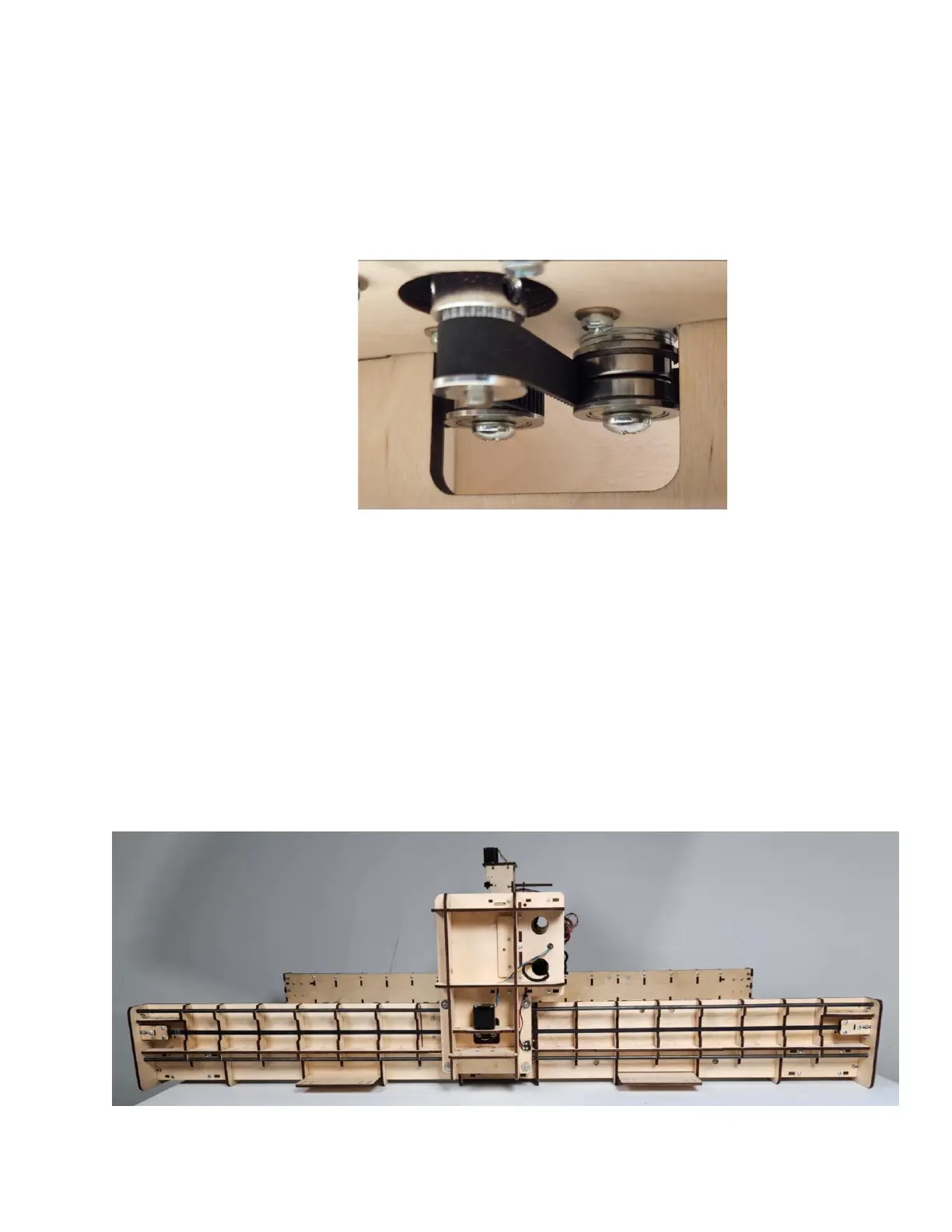

Slide the loop in the GT2 Belt over the GT2
Pulley, keeping tension on the belts so they
do not slip off the Idler Pulleys.
Step 3j Slip a Belt Retainer Assembly end over the
exposed thread so that the Square Nut is
seated in the cutout of the Belt Retainer
Assembly on the opposite side as shown.
Tighten the M5 screws so that the GT2 belt is
snug. Do not over tighten and stretch the
belt.
