137

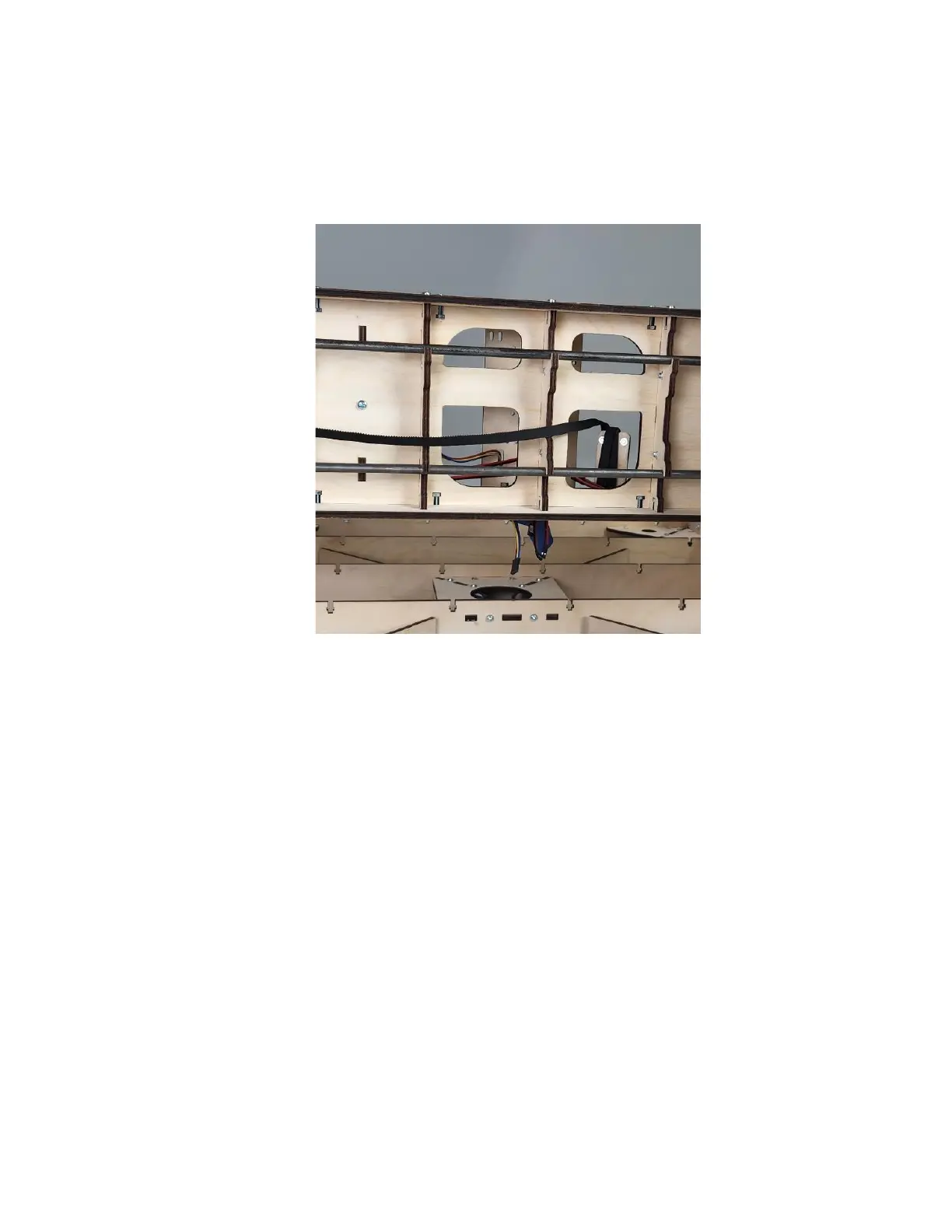

Step 5d Temporarily place the Belt Retainer Assembly
through the large opening in the Gantry
Assembly as shown.
