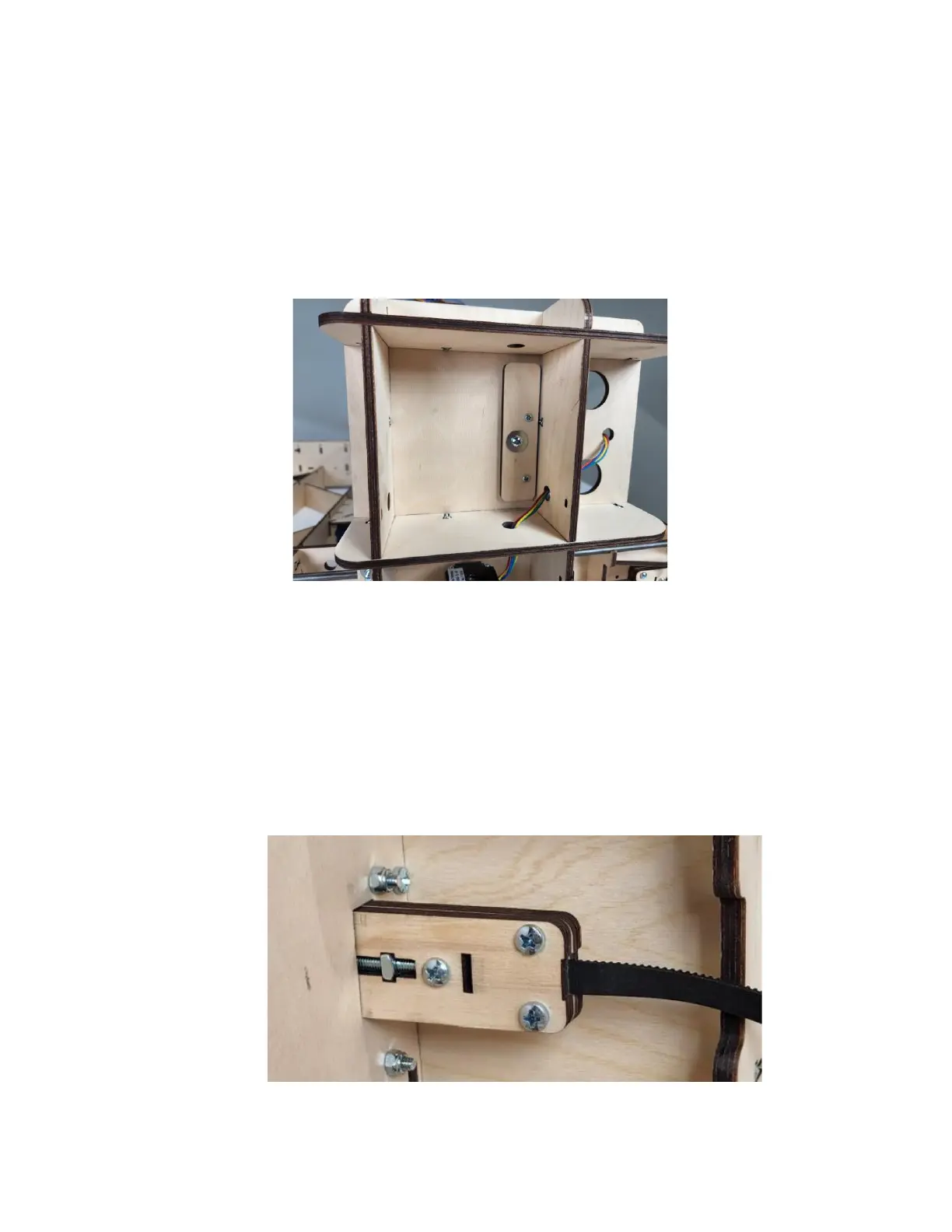

Step 5b Insert a M5 x 30 Machine Screw with Idler

Fender Washer (H50), through the Rail

Stop and thread a M5 Square Nut on the

exposed threads. Repeat for other Gantry

Side Assembly.

Step 5c Slip the Belt Retainer Assembly end over the

exposed thread so that the Square Nut is

seated in the cutout in the Belt Retainer

Assembly. Be sure the smooth side of the GT2

Belt is visible with the teeth oriented toward

the Gantry Assembly.
