13

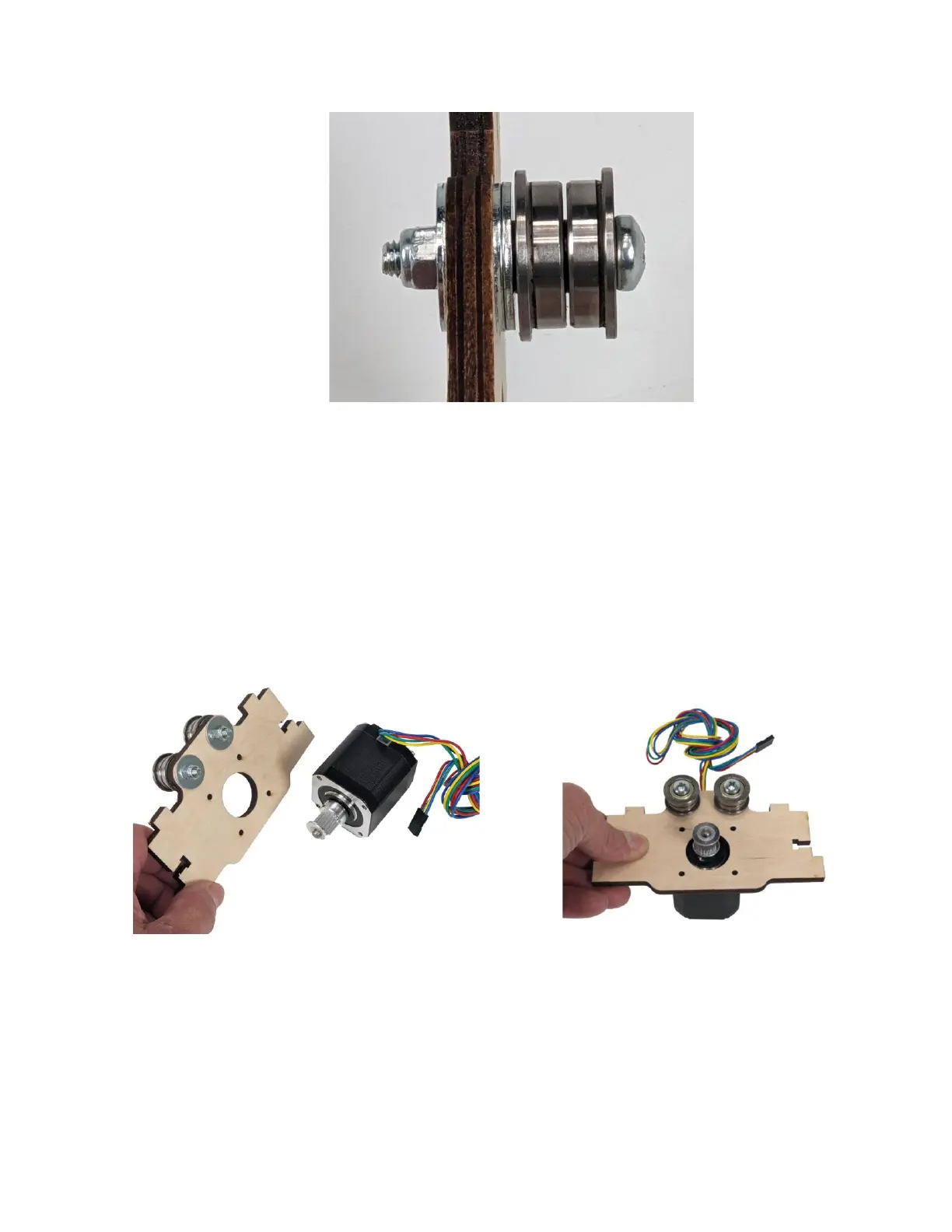

Repeat to install the remaining 2 Idler
Assemblies.
Step 2c Align the mounting holes of the Stepper
Motor with holes in the Stepper Motor
Assemblies.
