BobsCNC QUANTUM MAX User Manual

14

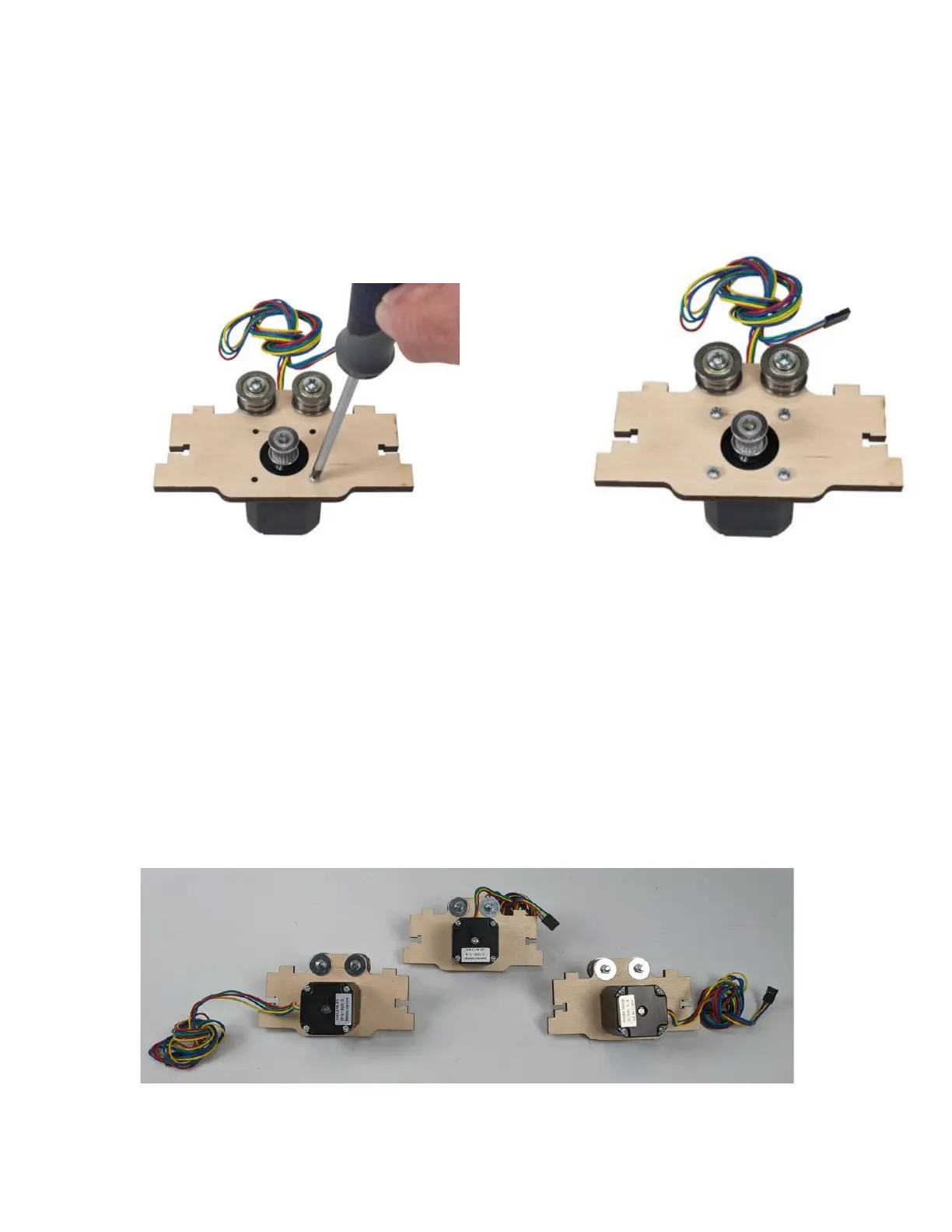

Secure the Stepper Motor to the XY Stepper
Motor mount with four M3 x 10 Machine
Screws (H37) with M3 Washer(H88).
NOTE: When viewed from the back the Stepper Motor wires of
each Motor are oriented in three directions. The wires of the Y
Stepper Motor are centered between the Idler Bearing and run
upward. The wires of the X1 and X2 Stepper Motor run one to
the left, the other to the right as shown below.
