140

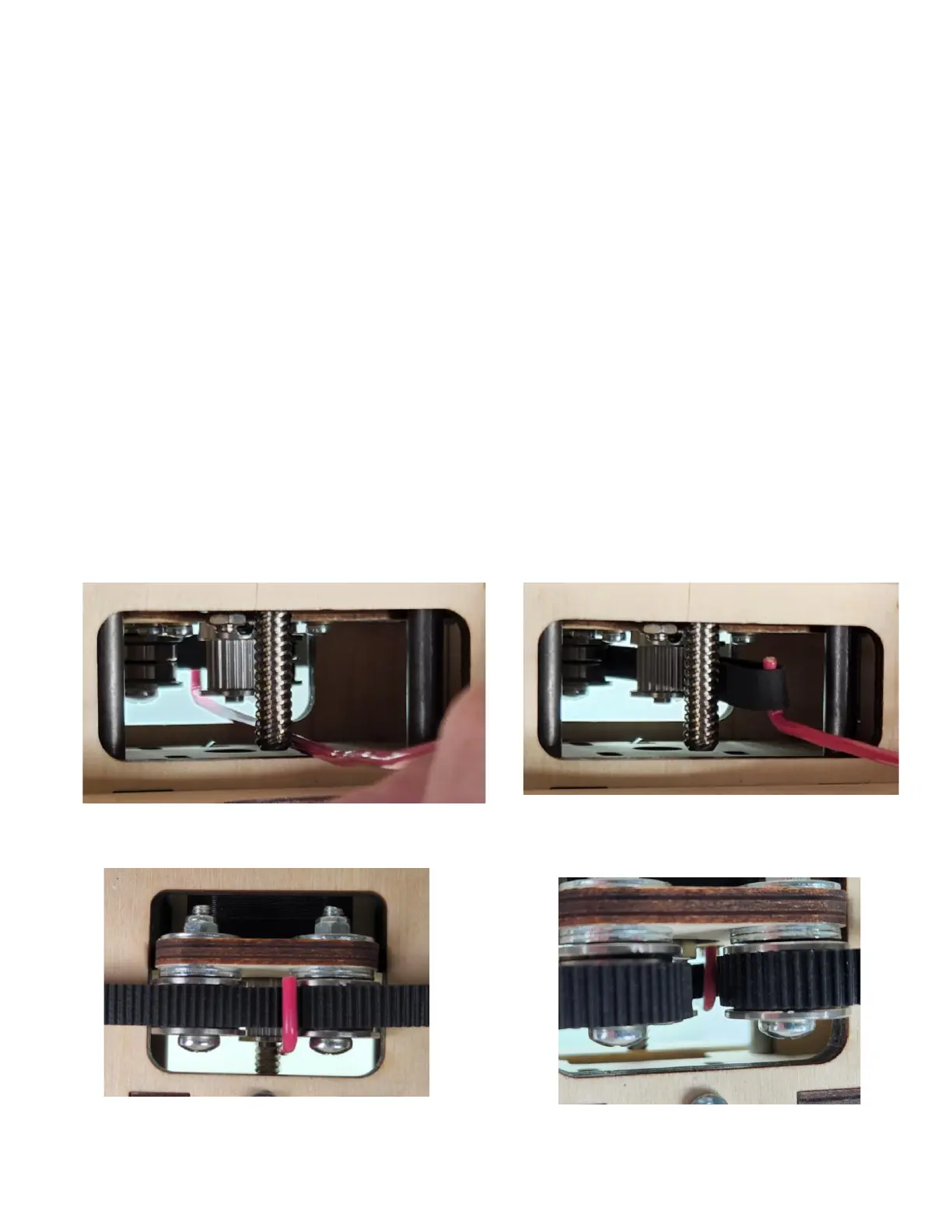

Step 5g Using a long Allen Wrench or a stiff
piece of wire (e.g., AWG 12 solid
core copper wire), bend a small
hook into one end of the wire.
Carefully insert the hook through
the front of the Z Frame Assembly
and hook the wire over the GT2 Belt
as shown. Pull the GT2 Belt between
the Idler Bearings and create a loop
while keeping tension on the GT2
Belt so it doesn't slip off the Idler
Bearings.
Back View
Front View
