141

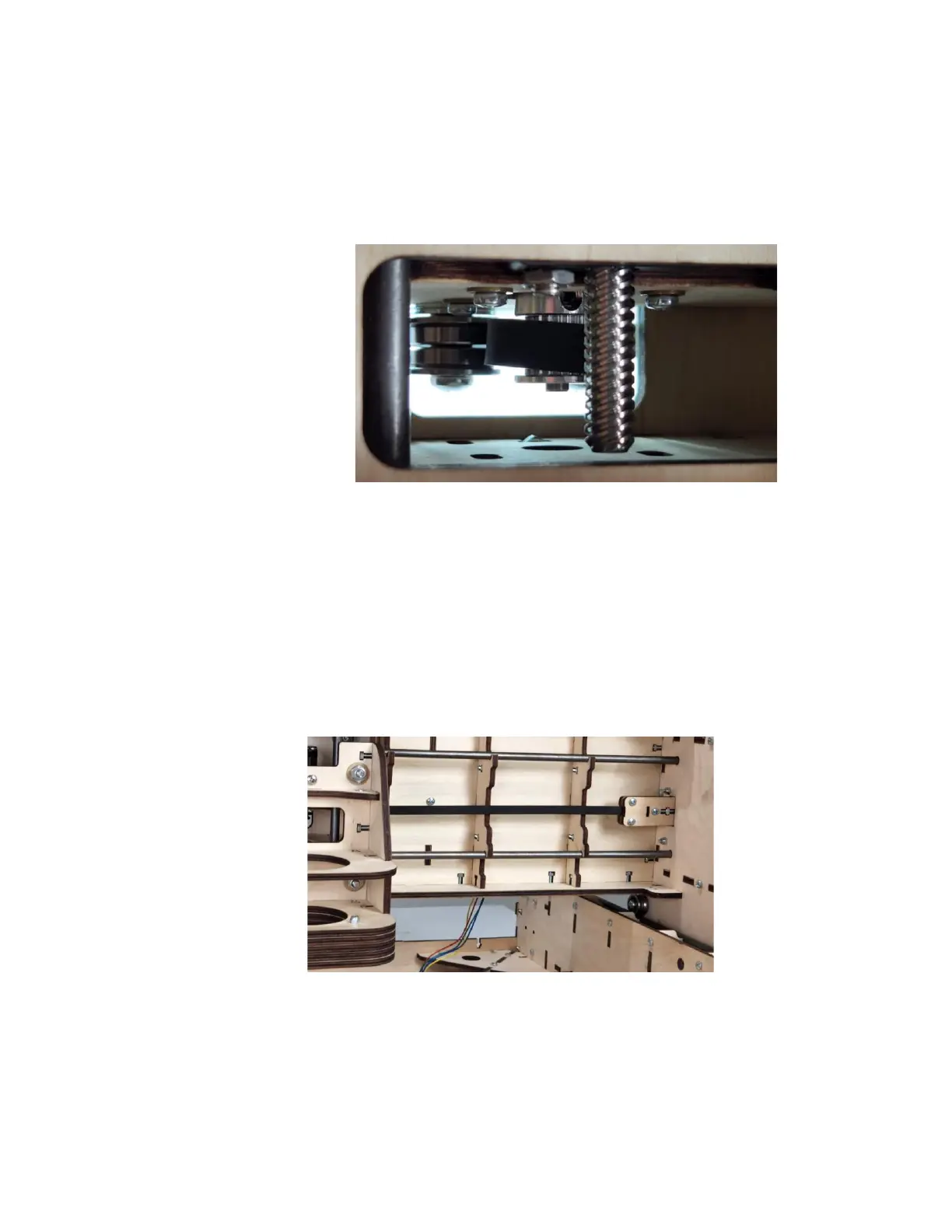

Step 5h Loop the GT2 Belt over the GT2
Pulley. Hold the Y Carriage
Assembly in place and pull the GT2
Belt snug.
Step 5i Slip the Belt Retainer Assembly end over
the exposed thread so that the Square Nut is
seated in the cutout in the Belt Retainer
Assembly and tighten the GT2 Belt to remove
any slack. Do not over tighten and stretch
the belt.
