145

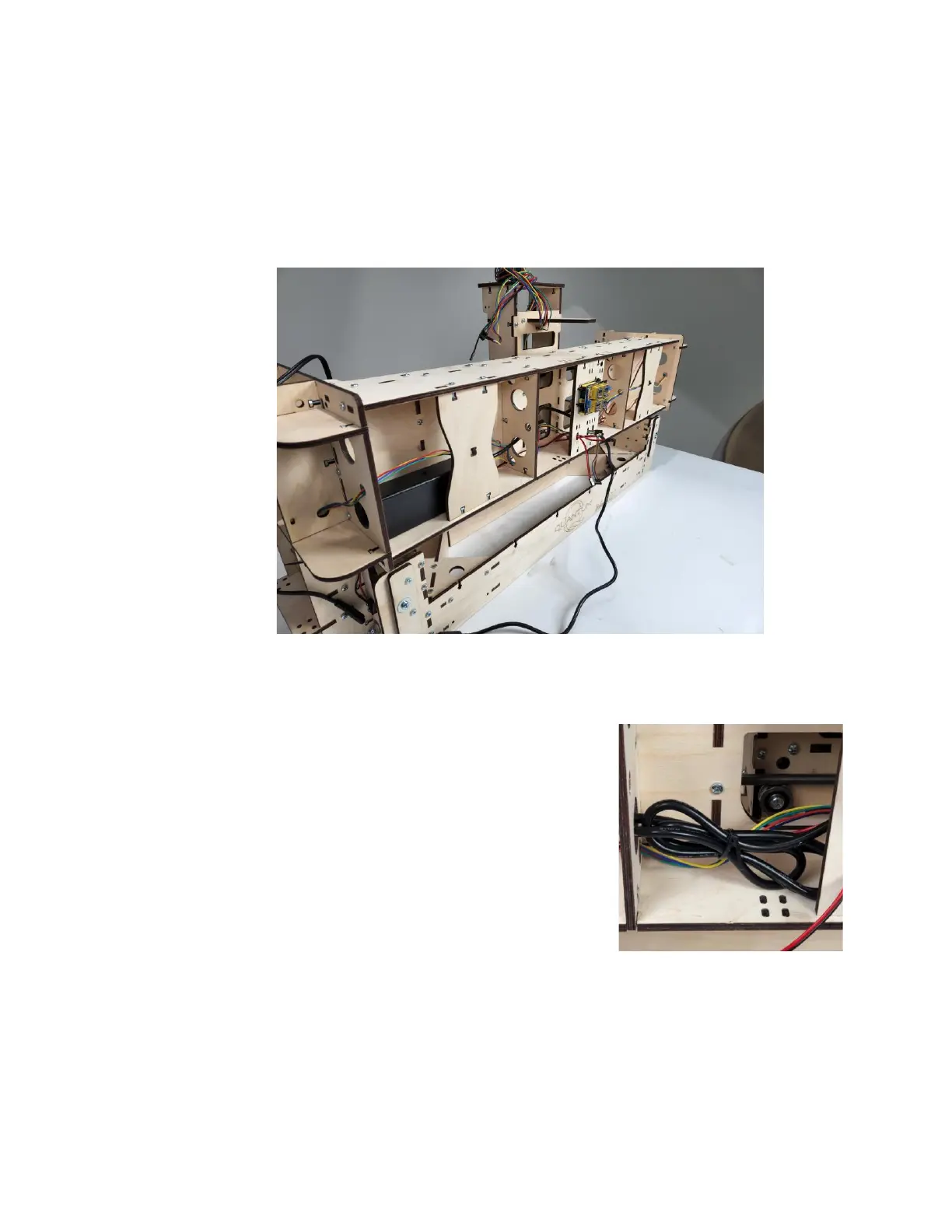

Step 7b Continue threading the Power Supply
cord behind the Gantry Back Support and
through the large hole in the Gantry Back
Brace and past the Controller Support as
shown.
Step 7c Bundle the excess power
cord and secure with a
small Zip Tie.
