146

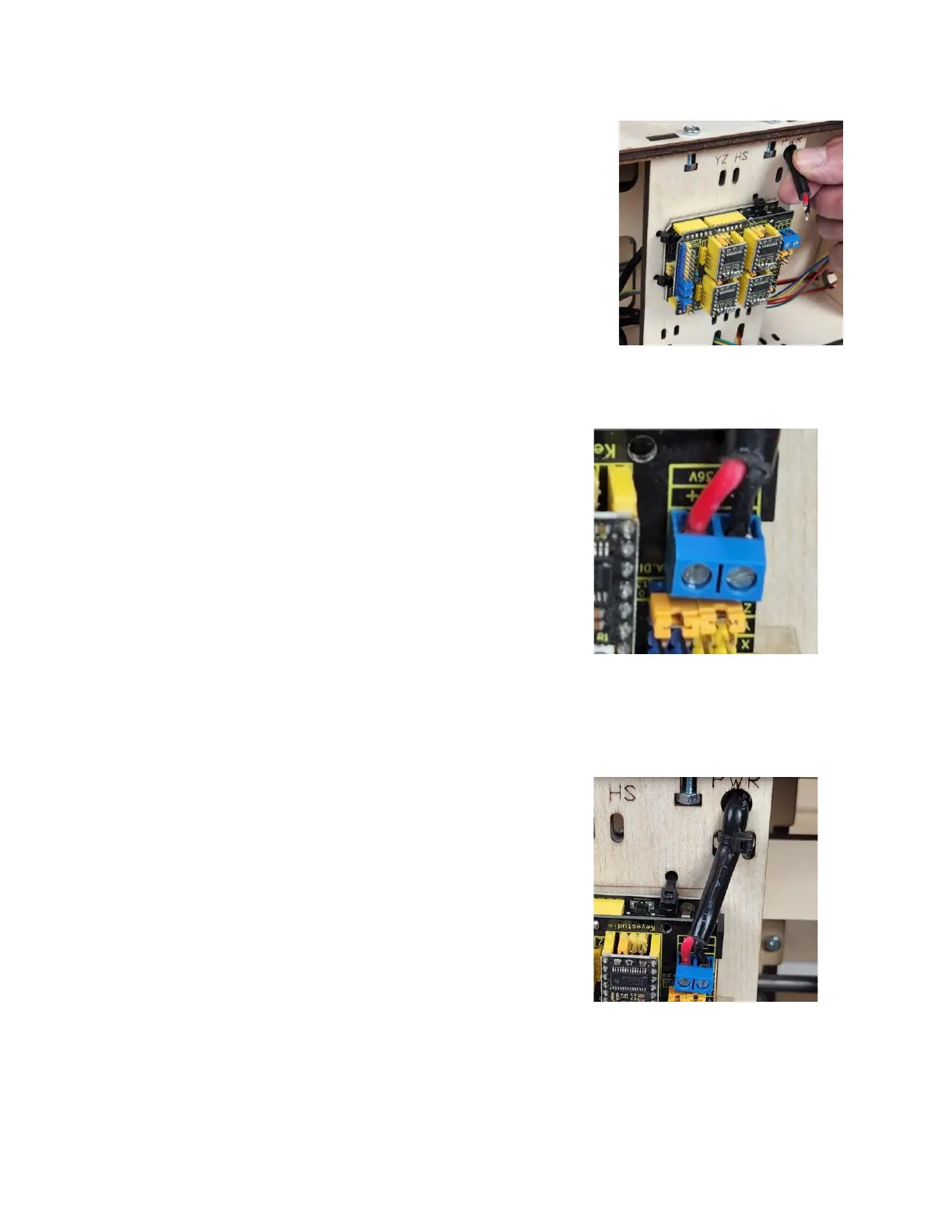

Step 7d Thread the exposed Power
cord end through the
PWR hole in the
Controller Support.
Step 7e IMPORTANT When
connecting the Power
Supply to the Controller,
make sure the red wire is
connected to the (+)
positive terminal and the
black wire is connected
to the (-) terminal.
Step7f Secure the Power cord
wire to the Controller
Support with a small Zip
Tie.
