Step 11 Connecting the Stepper Motors to the
Controller.

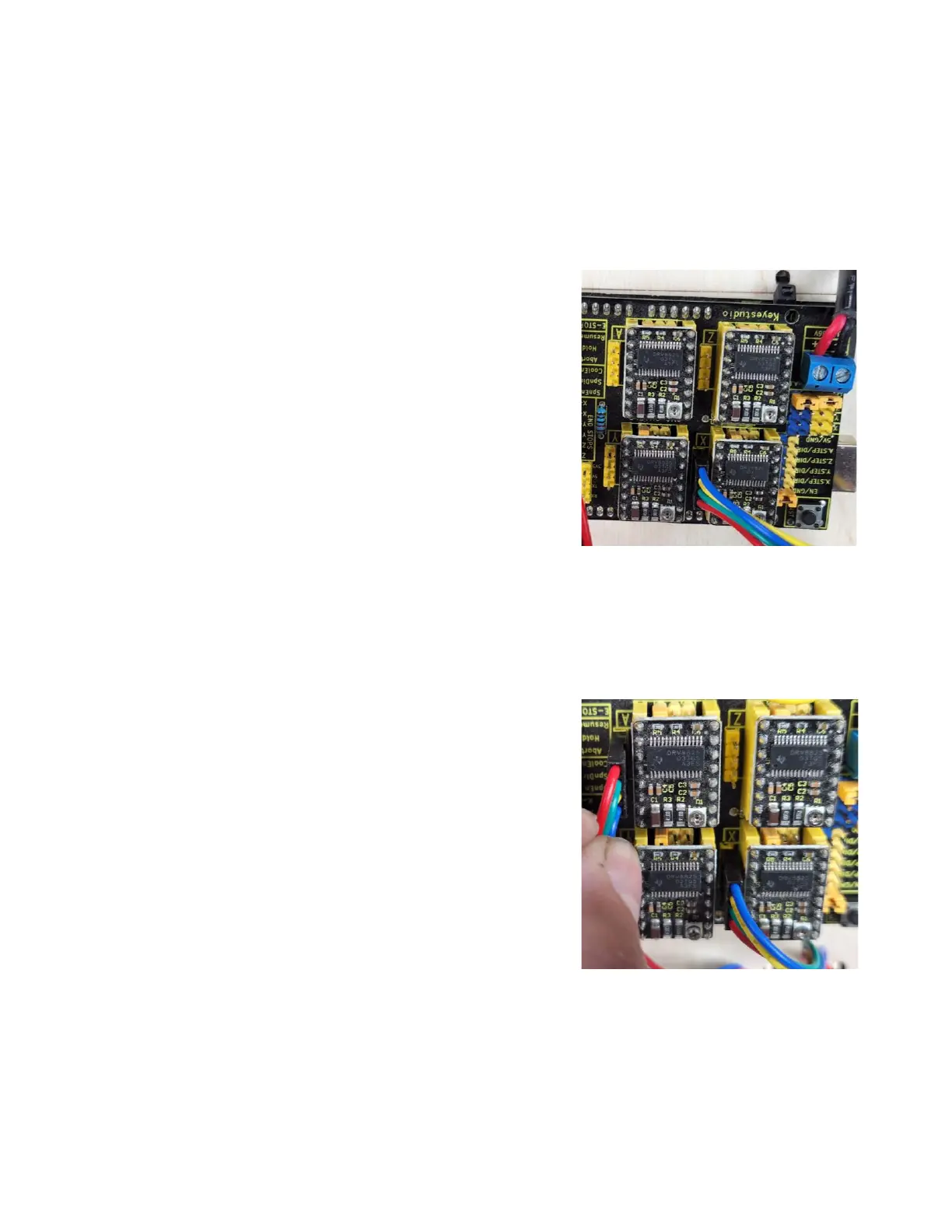

Step 11a Connect the X1 Stepper
Motor to the pins of
the “X” driver on the
Controller. Make sure
the blue-wire is at the
top.
Step 11b Connect the X2 Stepper
Motor to the pins of
the “A” driver on the
Controller. Make sure
the red-wire is at the
top.
