BobsCNC QUANTUM MAX - Wire Harness Management

158

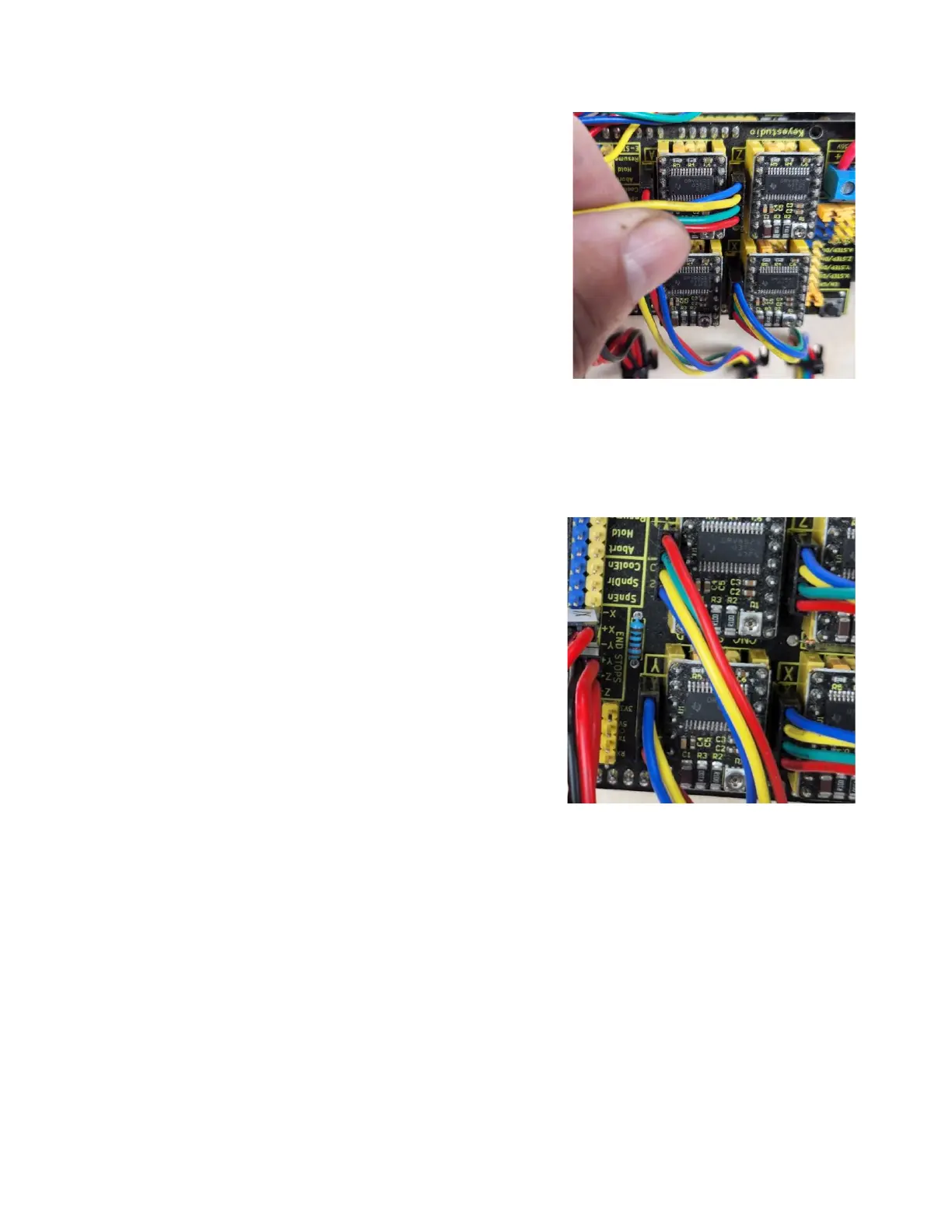

Step 11c Connect the Z Stepper
Motor to the pins of
the “Z” driver on the
Controller. Make sure
the blue-wire is at the
top.
Step 11d Connect the Y Stepper
Motor to the pins of
the “Y” driver on the
Controller. Make sure
the blue-wire is at the
top.
