BobsCNC QUANTUM MAX User Manual

20

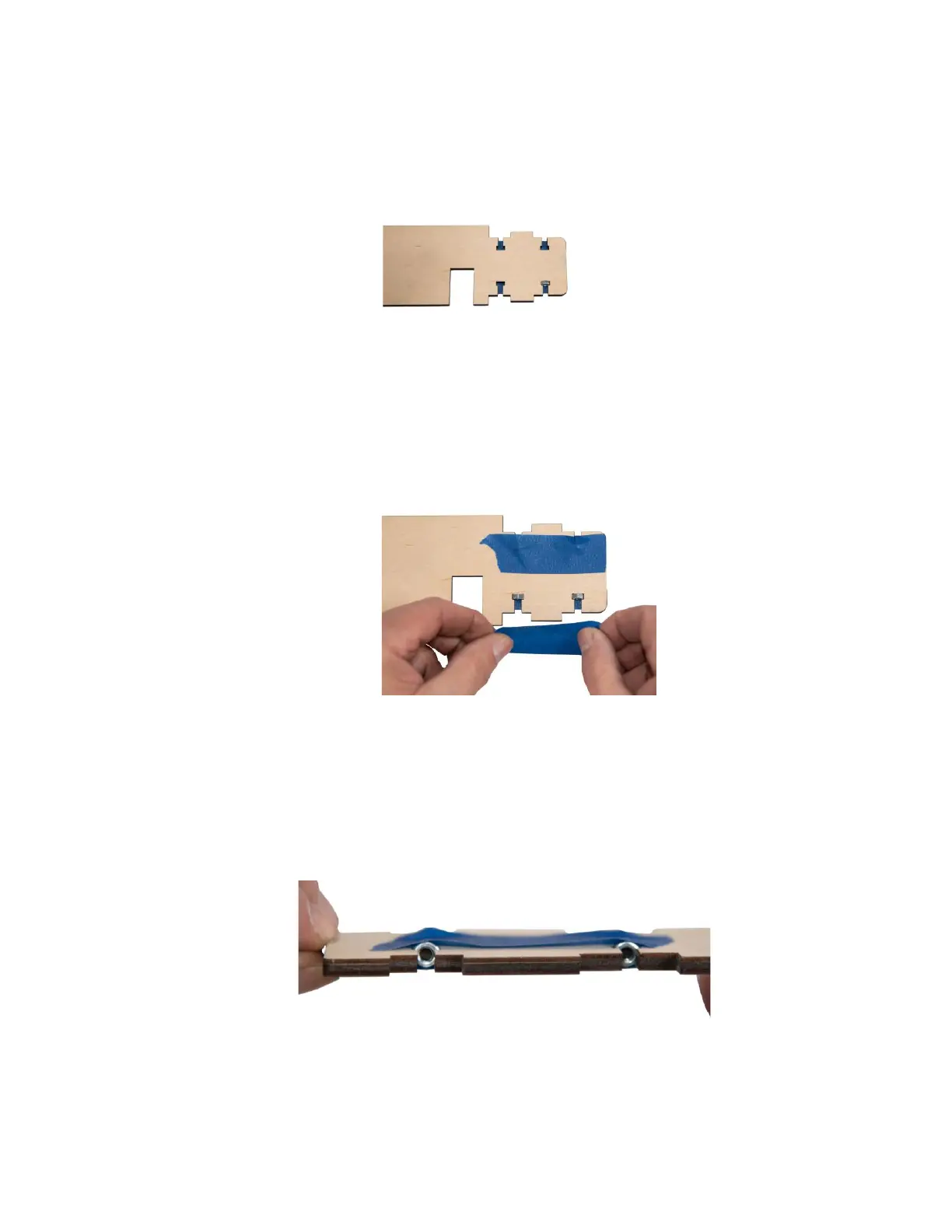

Step 2 Turn the Torsion Arms over and install a M4 Nut
(H15) in each of the T-Slots as shown below.
Cover the installed M4 Nuts with strips of painter’s
tape.
This will create a pocket to hold each of the M4 nuts
in place to make it easier to connect the Torsion
Arms (QX2) to the Torsion Plate (QX9).
