27
Step 6d Align the slots of the Outer Frame Mid
Support (QX4) into the slots at the end of the
Torsion Arm Assembly and slide into place as
shown.

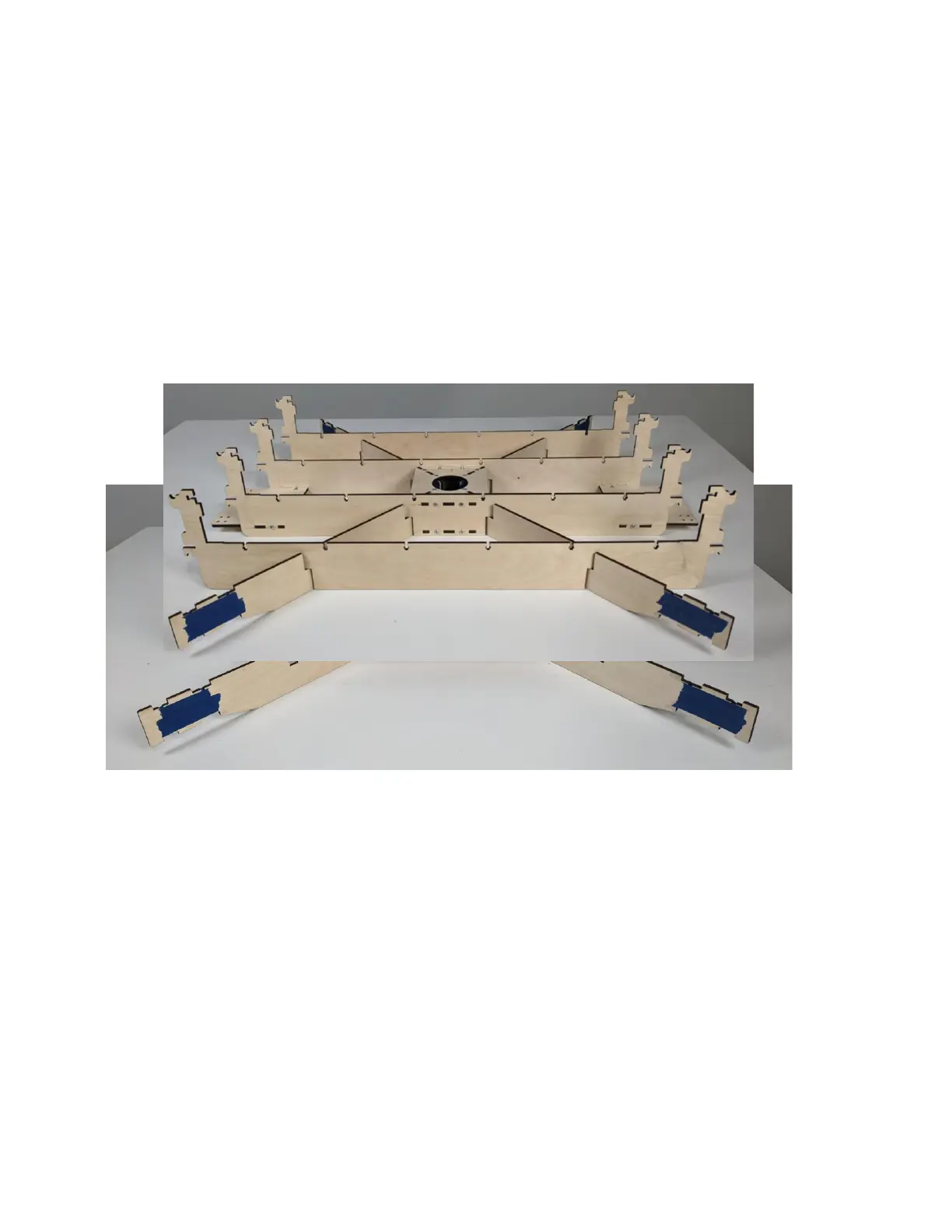

In the photo above, note the orientation of the
components in the Rear X-Frame Assembly.
FRONT
SIDE
SIDE
BACK
