29

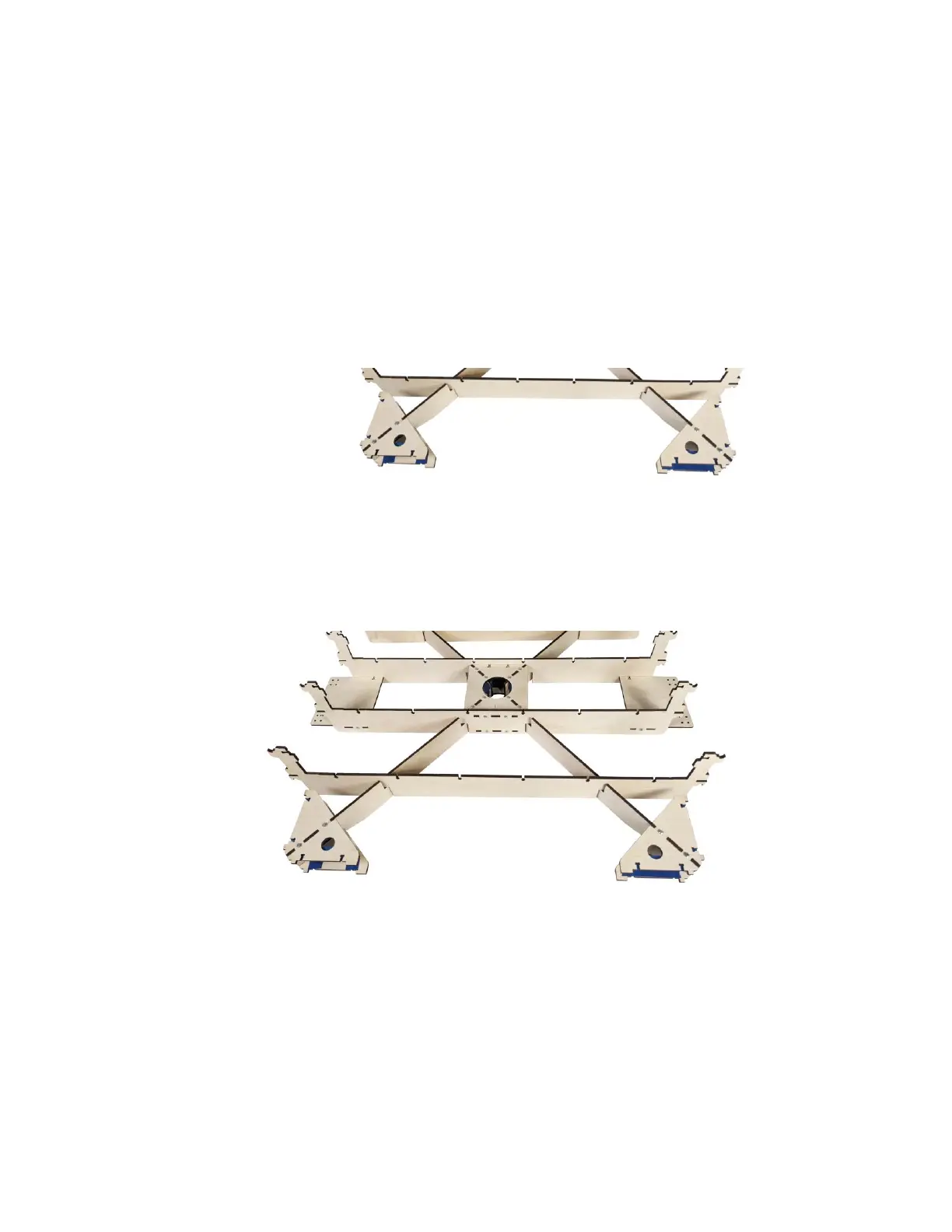

Step 7b Turn the Assembly over and attach the two
remaining Frame Corner Supports (QX8) using
M4 X 16 Machine Screws
After the four Corner Supports are attached,
use painter’s tape to cover the T-Slots on the
inside surface of the corner supports as
shown.
Step 7c Turn the Assembly to complete the next step.
