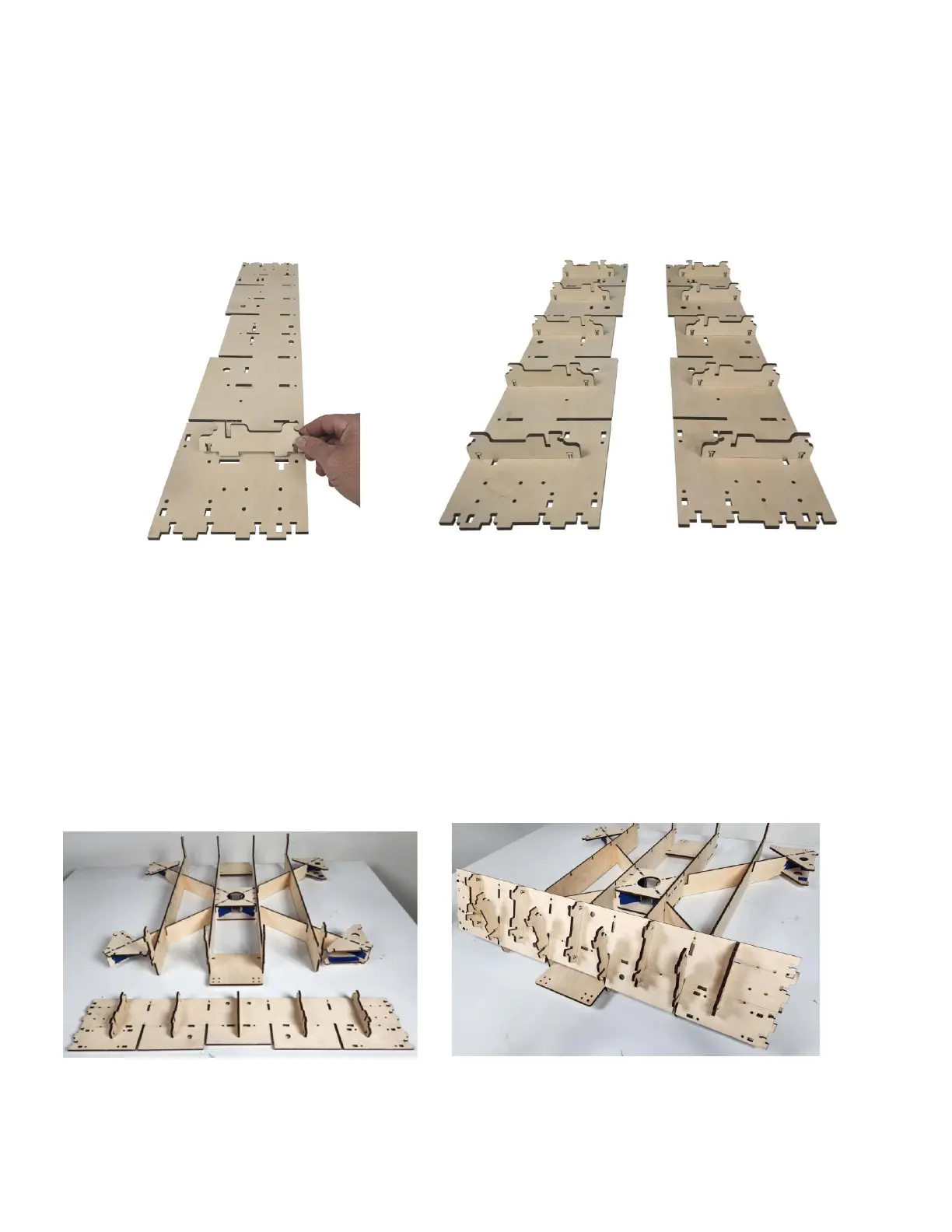

Step 8a Insert the tabs of the ten Rail Supports (QX1)
into the corresponding slots of the Frame Side
Supports (QX5) as shown and secure each
with two M4 x 16 Machine Screws and Nuts.
Step 8b Align the tabs on the X Frame Assembly and
the slots of the Frame Side Assembly as shown
and secure with four M4 X 16 Machine Screws
and Nuts.
