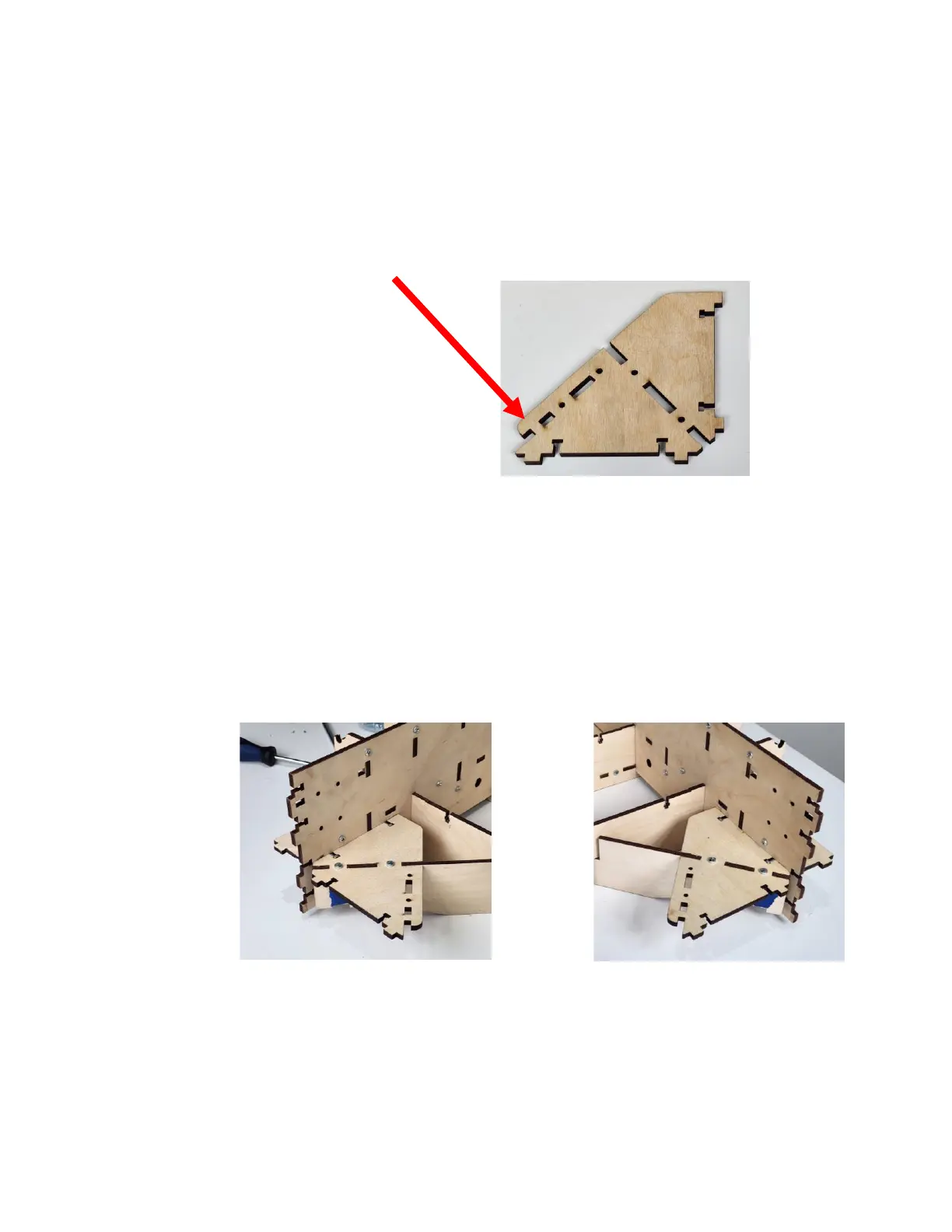

Step 9 Attach two Extension Frame Corner Supports
(EQX8) on the Torsion Arms (QX2). Note the
notch in the Corner Support must be oriented
toward the front and the center of the
Assembly.
Step 9a Align the slots in the Frame Corner Supports
(QX8) with the tabs on the Torsion Arms
(QX2). Slide in place and secure with four M4
x 16 Machine Screws and Nuts. Repeat for
both top corners.
Only install the top EQX8 Extension Frame
Corner Supports. The bottom Extension Frame
Corner Supports will be installed in a later
step.
To Next Page
