33

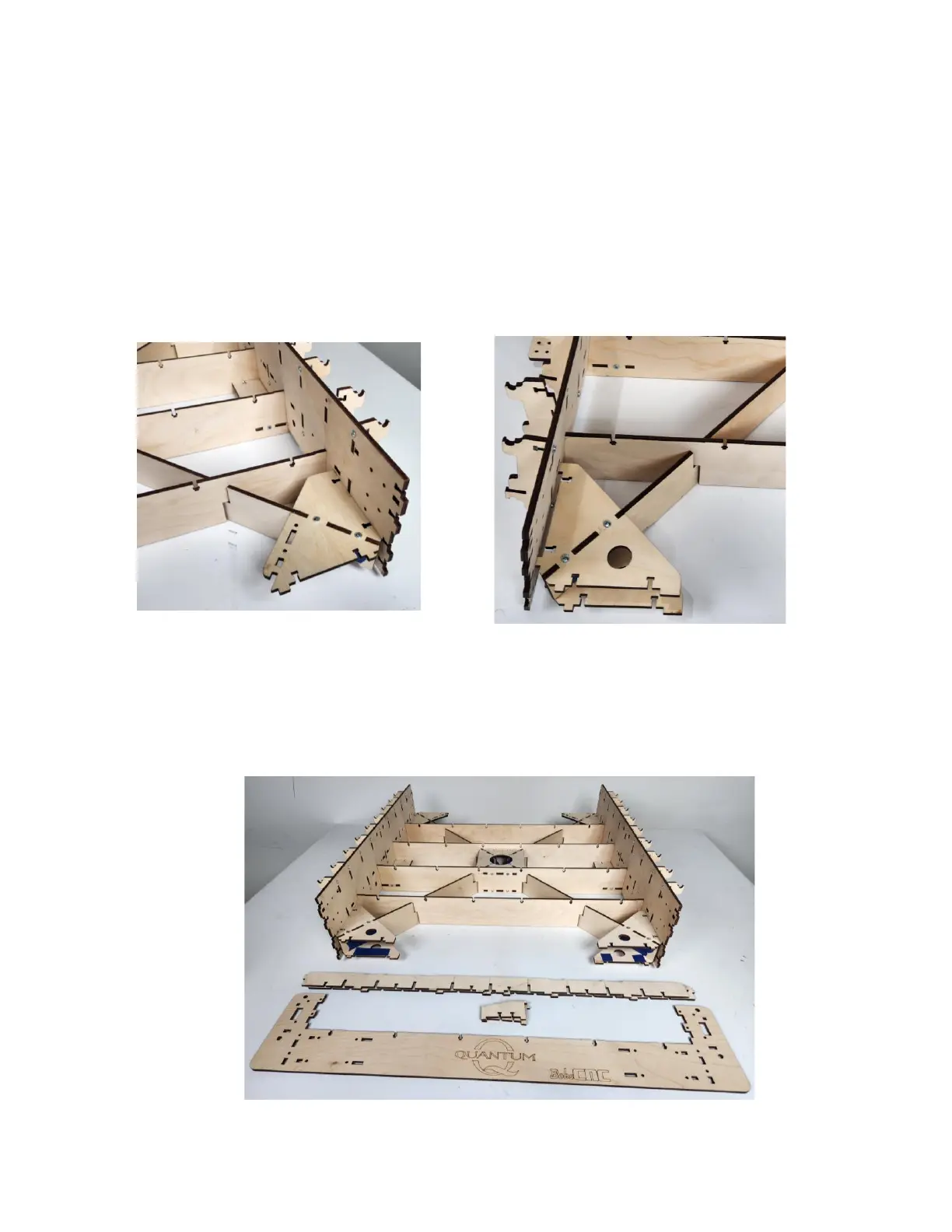

Fit the tabs of the Fame Corner Supports (QX8) into the
slots of the Side Assembly and secure with four M4 x 16
Machine Screws and Nuts. Turn the Assembly over to
insert the Screws and Nuts on the Bottom Frame Corner
Supports (QX8). Repeat to complete both sides.
Step 10 Attaching the Belt Supports (QX11), the Frame End
Support (QX6) and the Frame Side Brace (QX10).
