BobsCNC QUANTUM MAX - Page 36

35

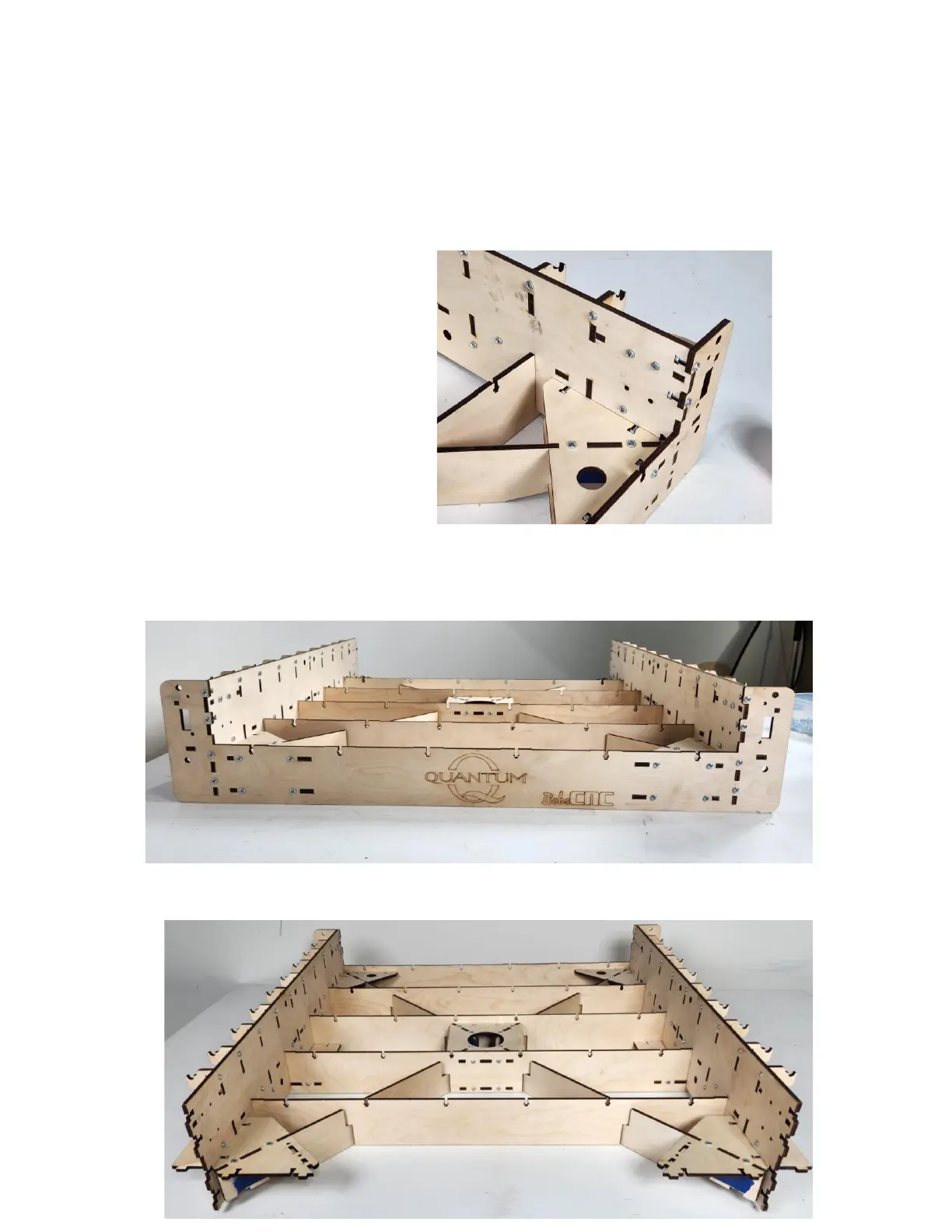

Step 10c Align the tabs and slots of the Frame End
Support (QX6) with the tabs and slots of the
Side Assembly and secure with eight M4 X 16
Machine Screws and Nuts for each side.
.
Back View
