37

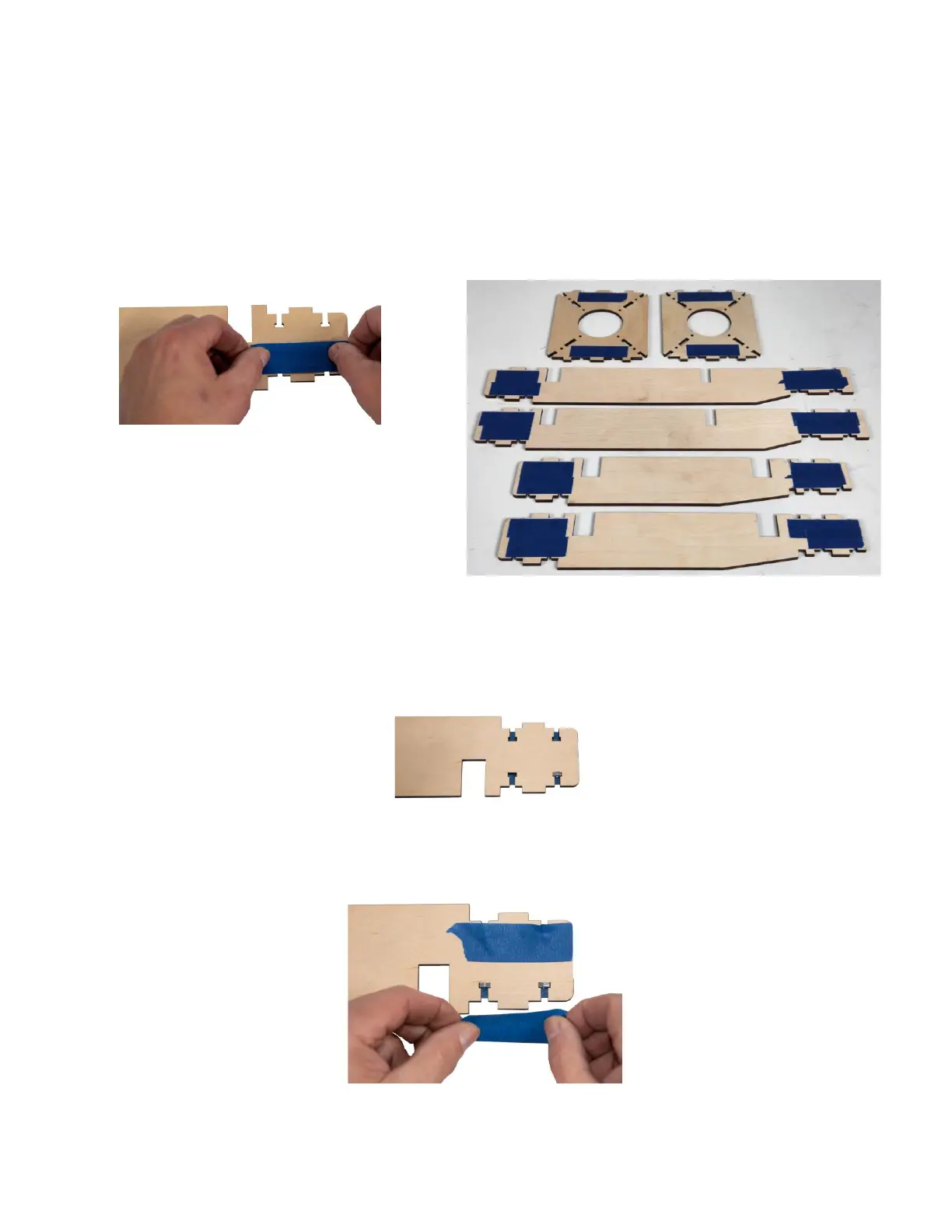

Step 1 Use strips of painter’s tape to cover all the T-Slot
cutouts in each of the four Torsion Arms (QX2 and,
EQX2) and Torsion Plates (QX9) as shown.
Step 2 Turn the Torsion Arms over and install a M4 Nut in
each of the T-Slots as shown below.
Cover the installed M4 Nuts with strips of painter’s
tape.
