This will create pockets to hold the M4 nuts in place

making it easier to connect the Torsion Arms (QX2

and EQX2) to the Torsion Plate (QX9).

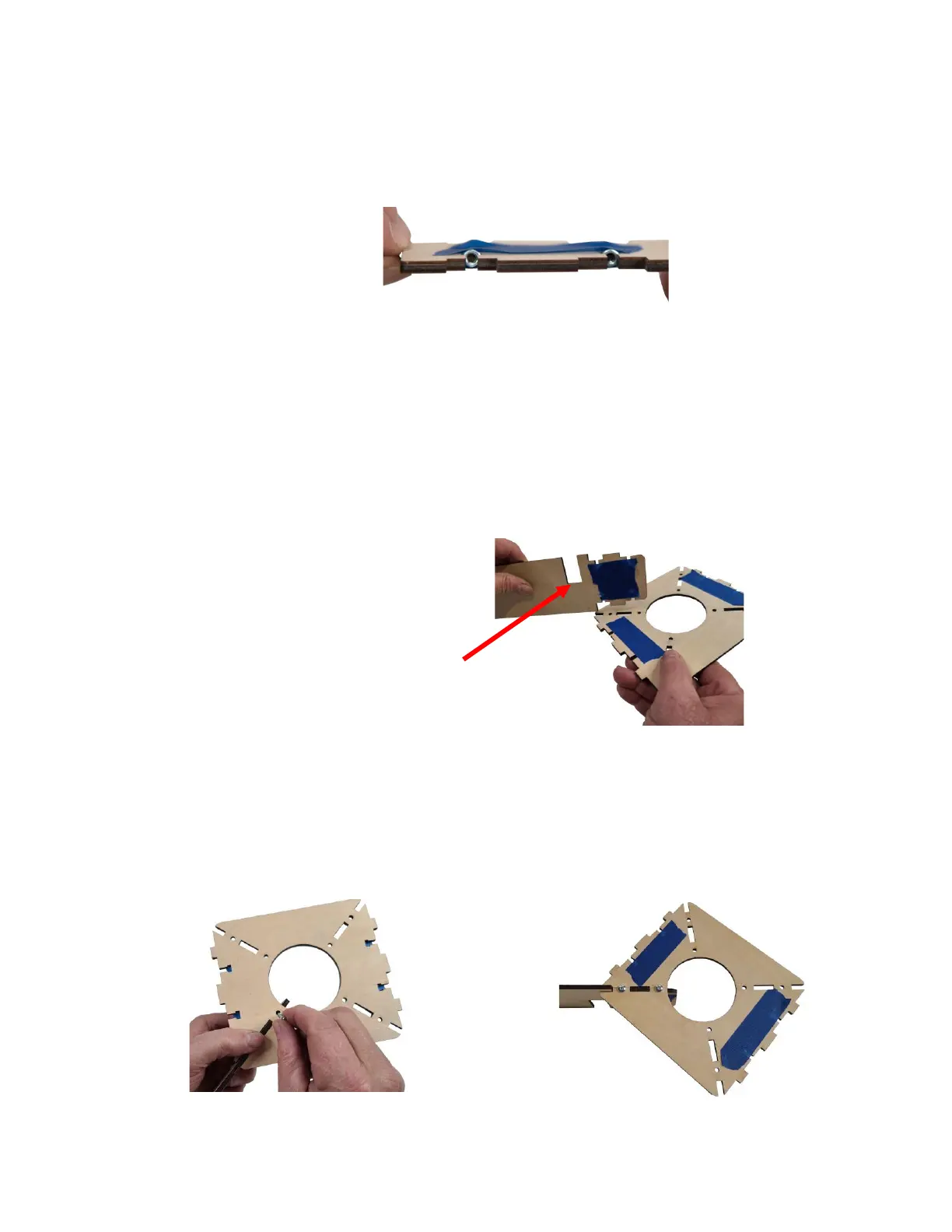

Step 3 Align the tab of the Torsion arm (QX2) with the

corresponding slot in the Torsion Plate (QX9).

Notice how the rectangular notch is oriented. Make

sure the cutout in each of the Torsion Arms is

oriented in the same way in the Assembly.

Step 4 Secure the Torsion Arm (QX2) to the Torsion Plate

using two M4 x 16 Machine Screws as shown below.

Rectangular Notch
