49

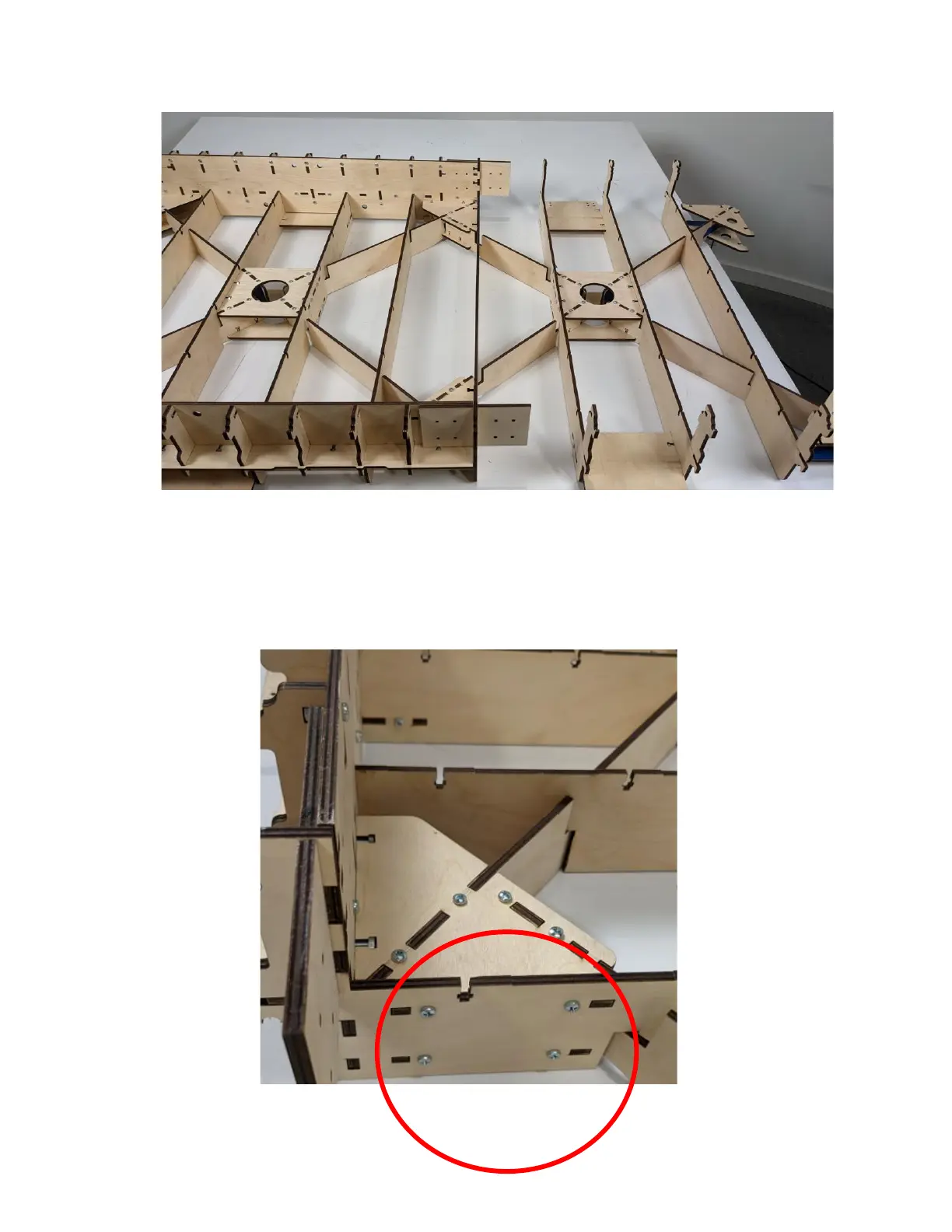

Step 9a Secure the Extension Frame Assembly to the
X-Frame Assembly with four M4 x 16 Machine
Screws and Nuts on each side, as shown.
