BobsCNC QUANTUM MAX - Page 51

50
Step 10 Attaching the (QX1) Rail Supports to the (QX5)
Frame Side Support.

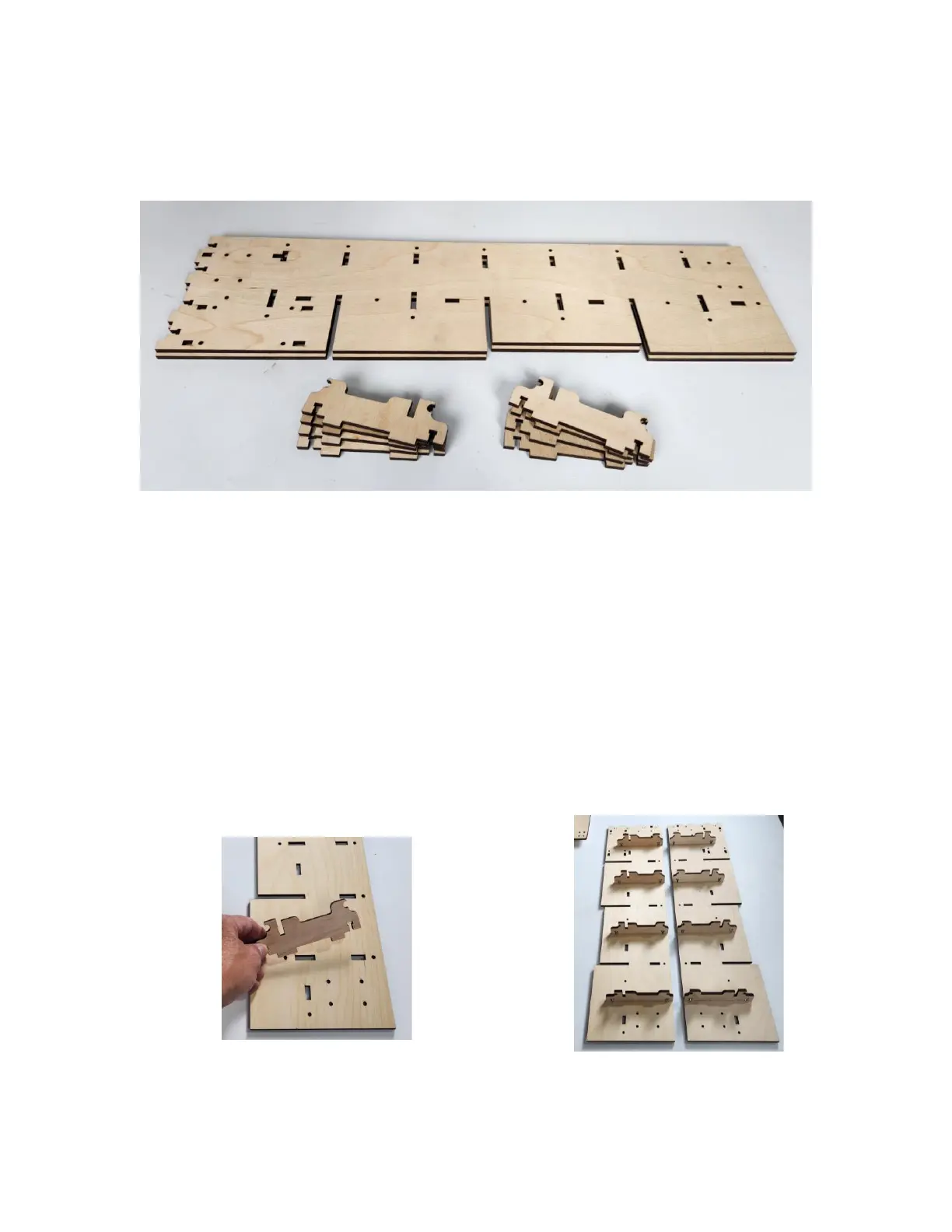

Step 10a Insert the tabs of the eight Rail Supports
(QX1) into the corresponding slots of the
Extension Frame Side Supports (EQX5) as
shown and secure each with two M4 x 16
Machine Screws and Nuts.
