51

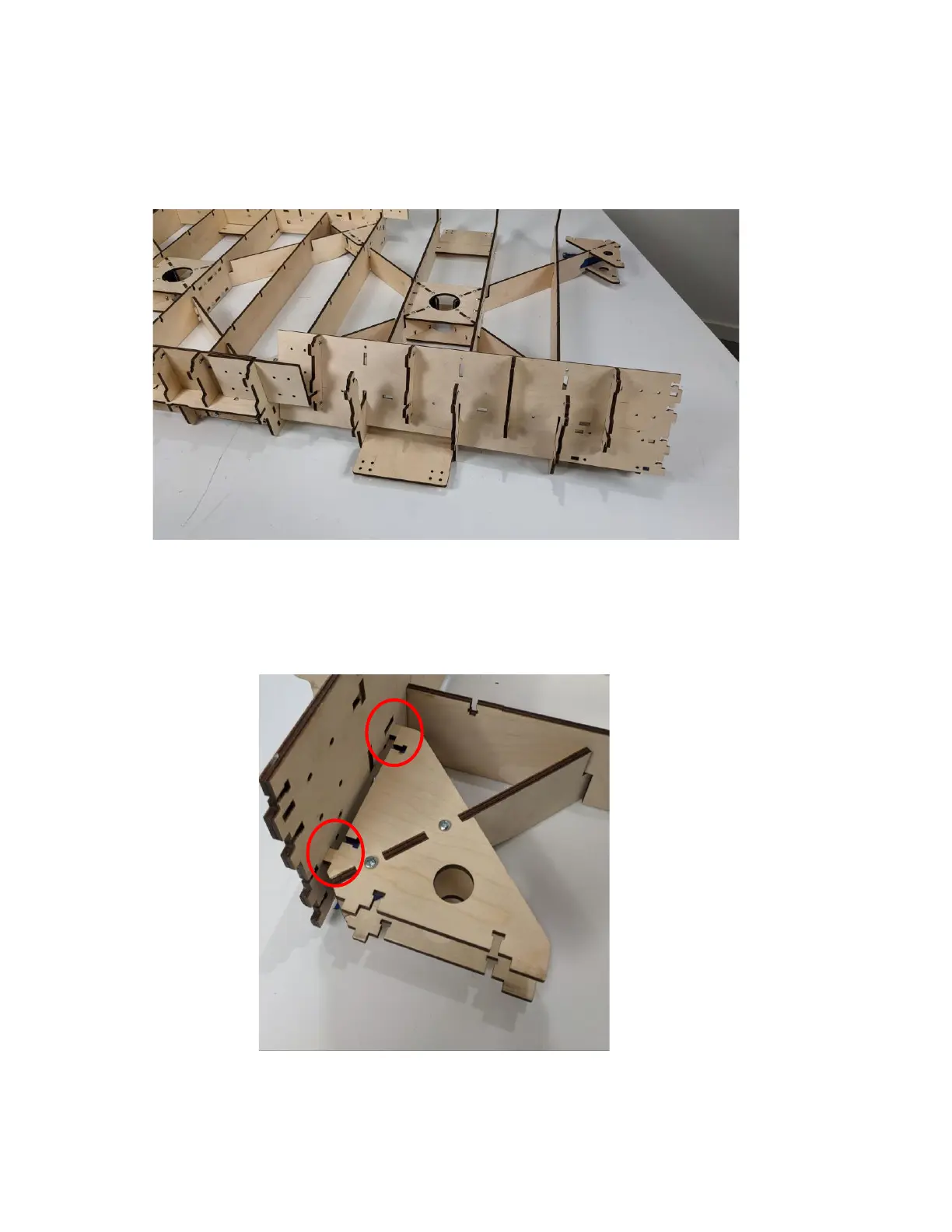

Step 11 Attach the Side Frame Assemblies to the X-Frame
Assembly as shown.
Step 11a Position the tabs of the Frame Corner Support
to the X-Frame Assembly, as shown.
