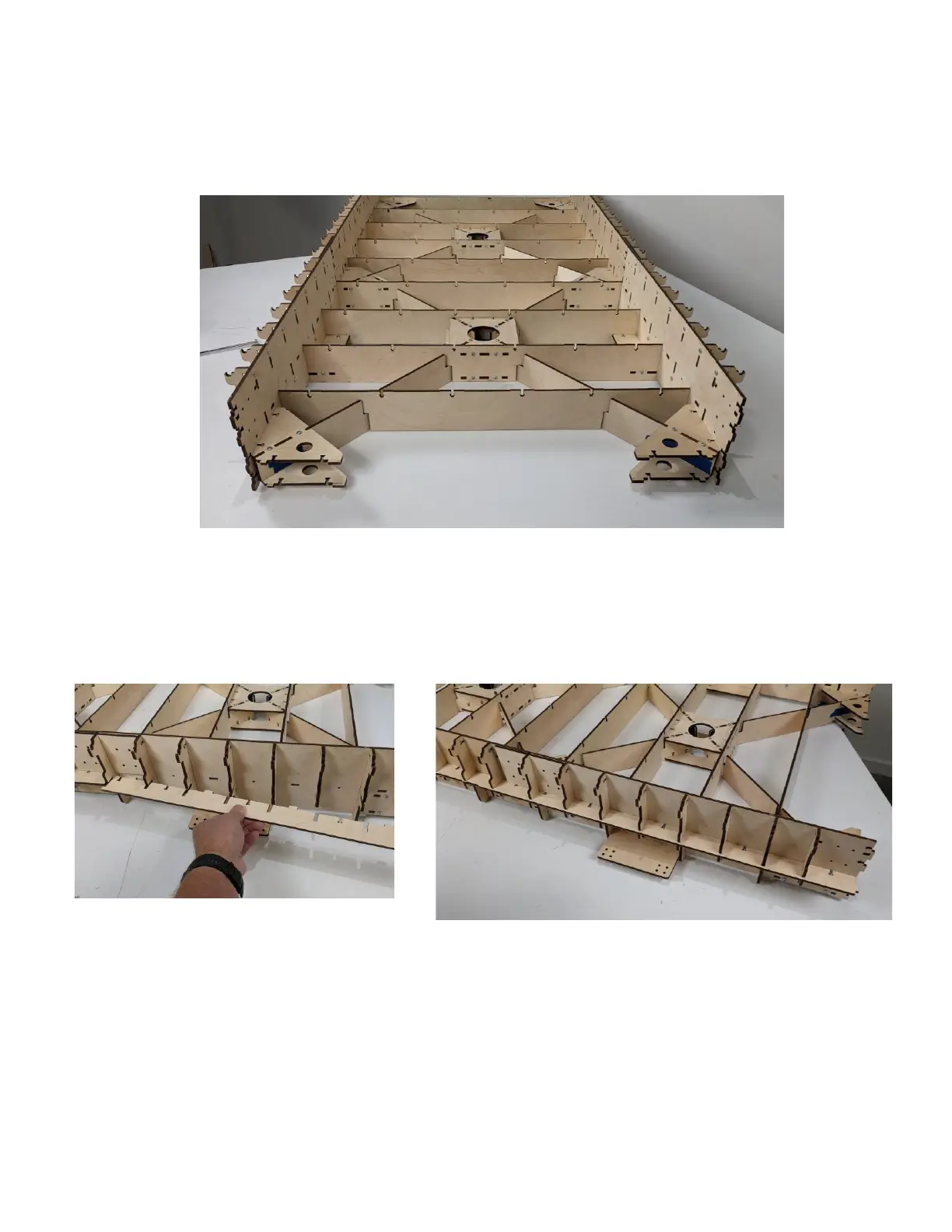

52
Step 11b
Sec
ure each side
with seven
M4 x 16 Machine
Screws and Nuts, as shown.
Step 12
Install the Extension Frame Side Br
ace (EQX10) on each
side of the X-Frame Asse
mbly, us
ing five M4 x 16 Machine
Screws and Nuts on each side, as shown.
