Step 13 Secure the Extension Coupling Plates (EQX12) with eight
M4 X 16 Machine Screws and Locknuts each as shown.

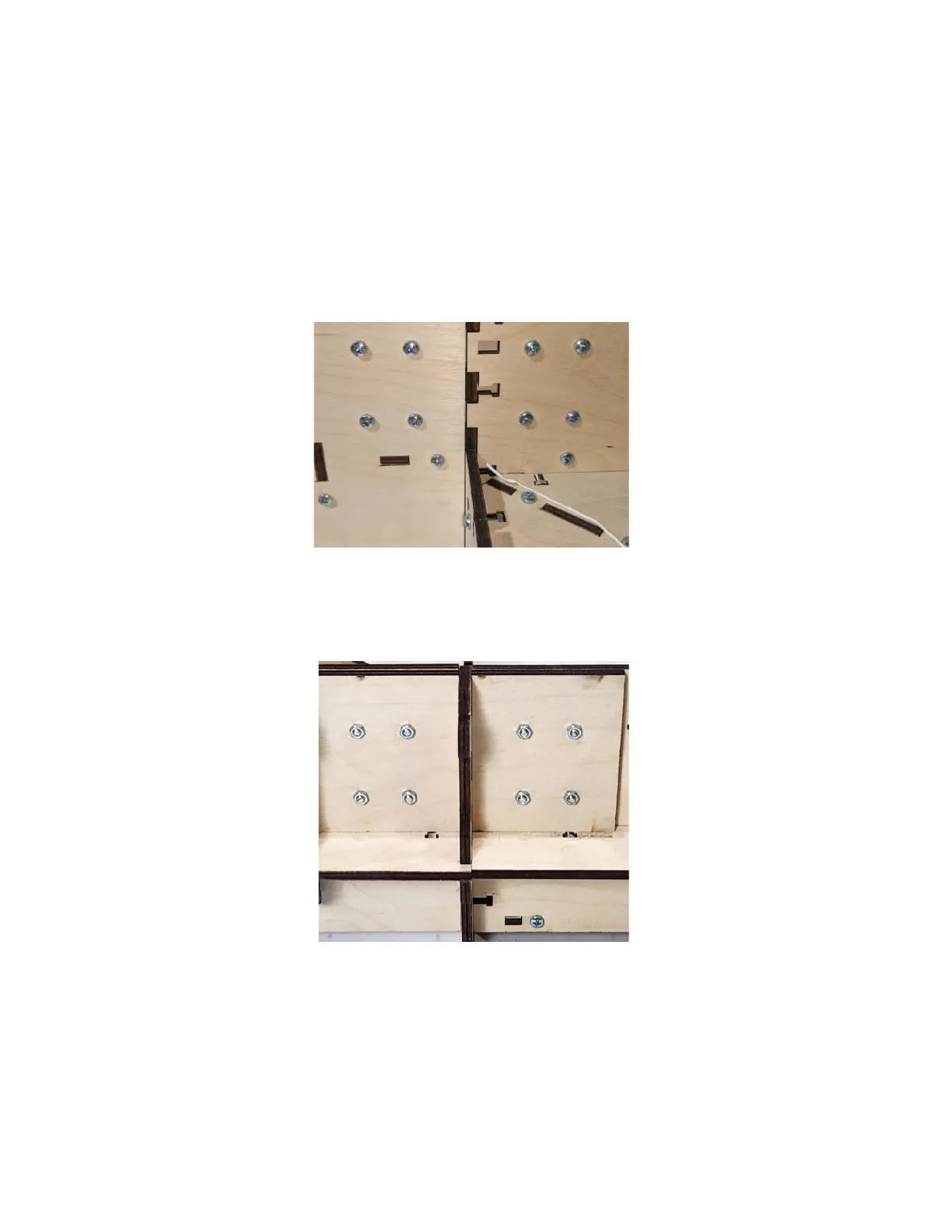

Inside view.
Outside view.
