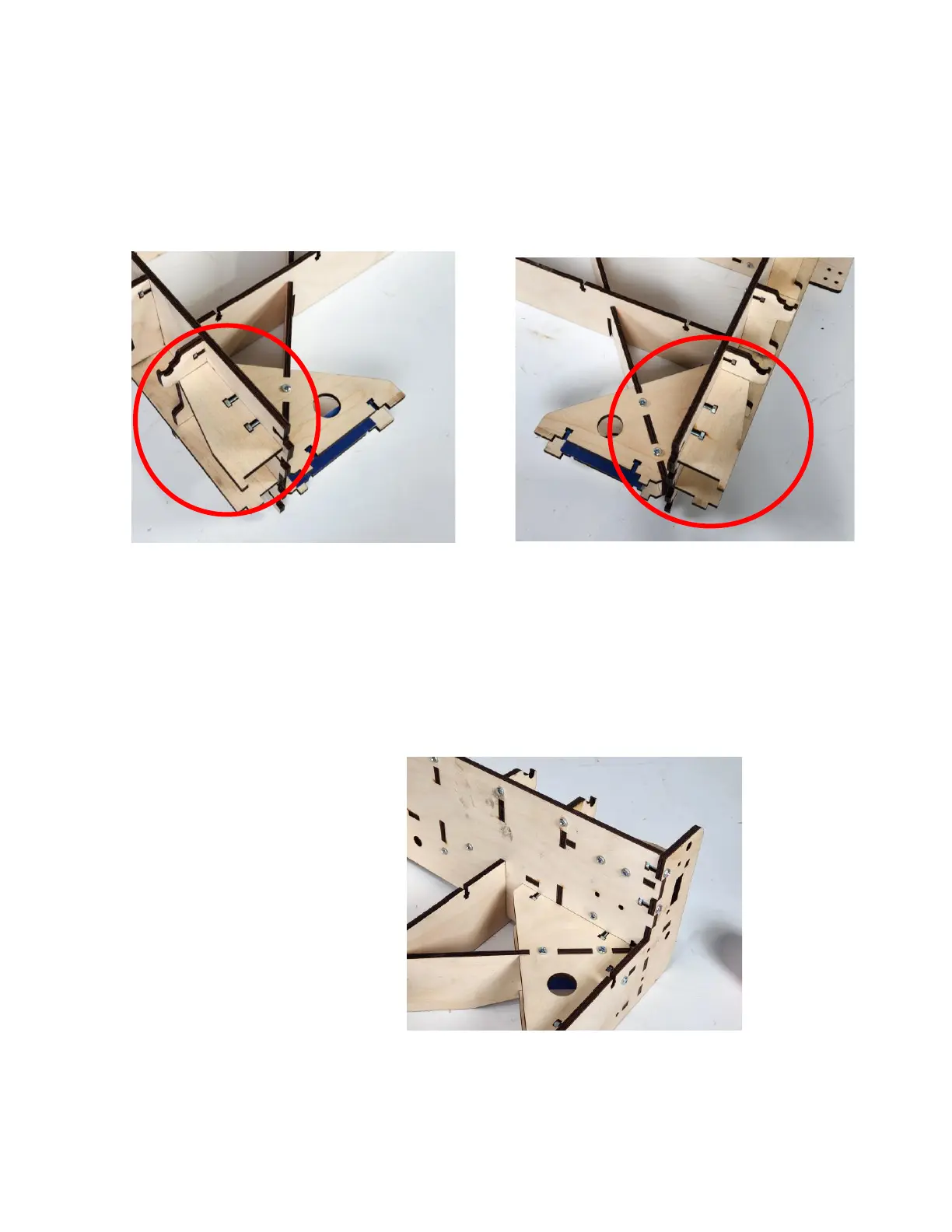

Step 14 Install the Belt Supports (QX11) at the Front of the
joined Assembly with two M4 x 16 Machine Screws
and Nuts each as shown.
Step 15 Align the tabs and slots of the Frame End
Support (QX6) with the tabs and slots of the
Side Assembly and secure with eight M4 X 16
Machine Screws and Nuts for each side.
