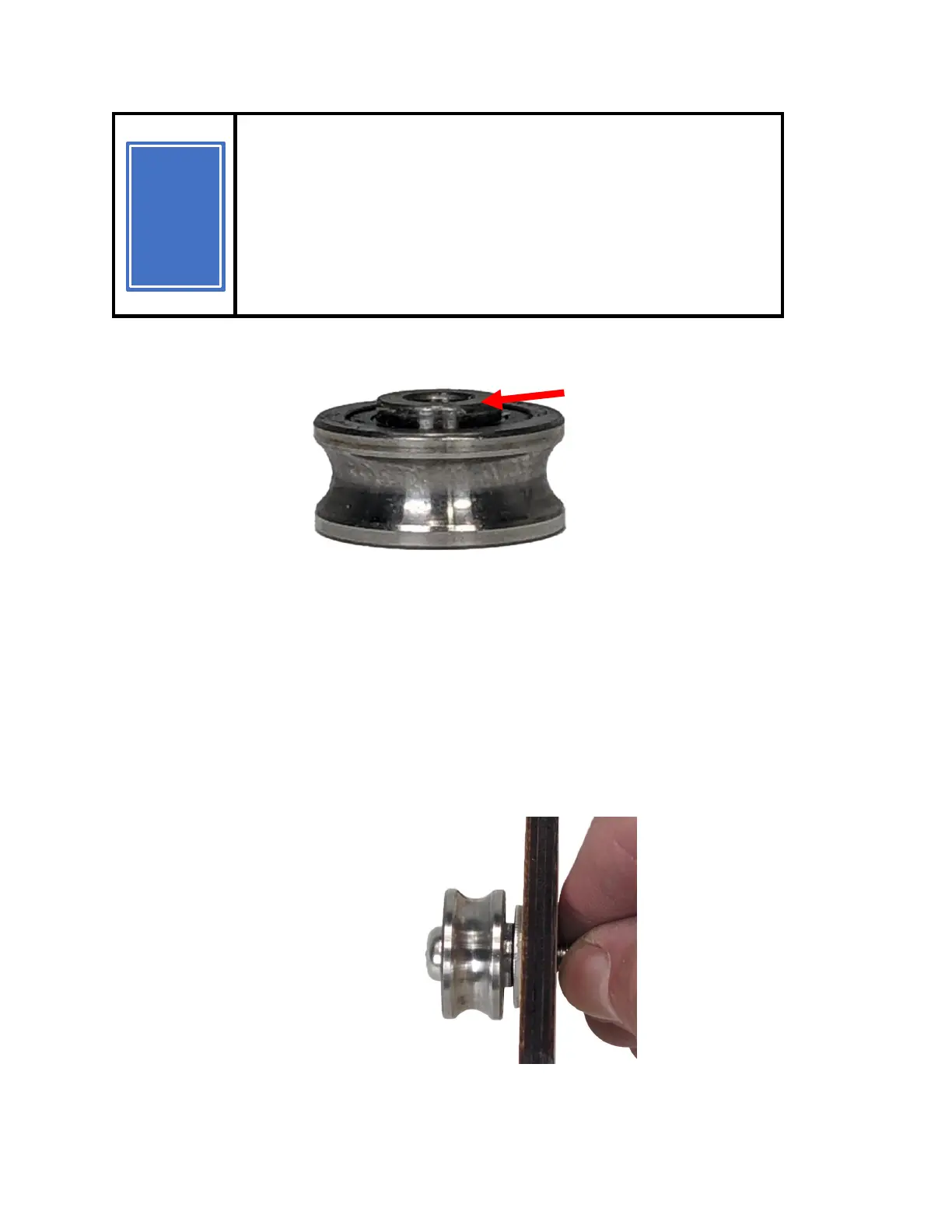

When inserting the Bearing Assembly

through the Back Frame (QZ1), make sure

the Hub of the SG20U Bearing faces the

Bearing Fender Washer which is pressed

against the wood.

Step 1a Insert the four bearing Assemblies

through the mounting holes in the Back

Frame (QZ1) with the Bearing Fender

Washer (H42) against the wood and the

Hub against the Bearing Fender Washer

as shown below.

TIP

HUB
