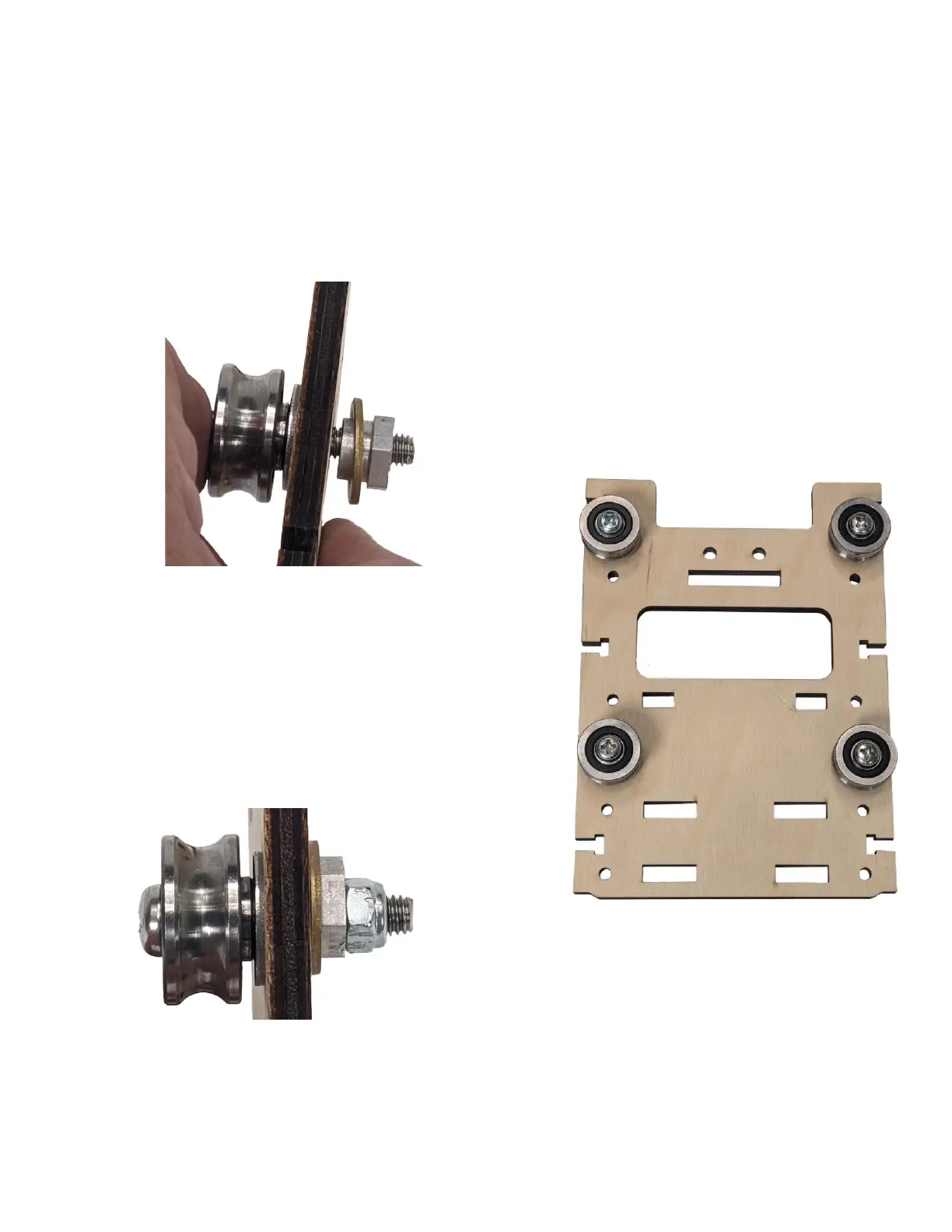

Step 1b Slide the Eccentric Washer (H41) over

the Eccentric Spacer (H40), inserting the

shaft of the M6 x 35 Machine Screw

(H95) through the Eccentric Spacer as

shown.

Secure the Bearing Assembly in place with

an M6 Lock Nut (H18) on each of the four

Assemblies.
