Step 2 Building the Router Mount.

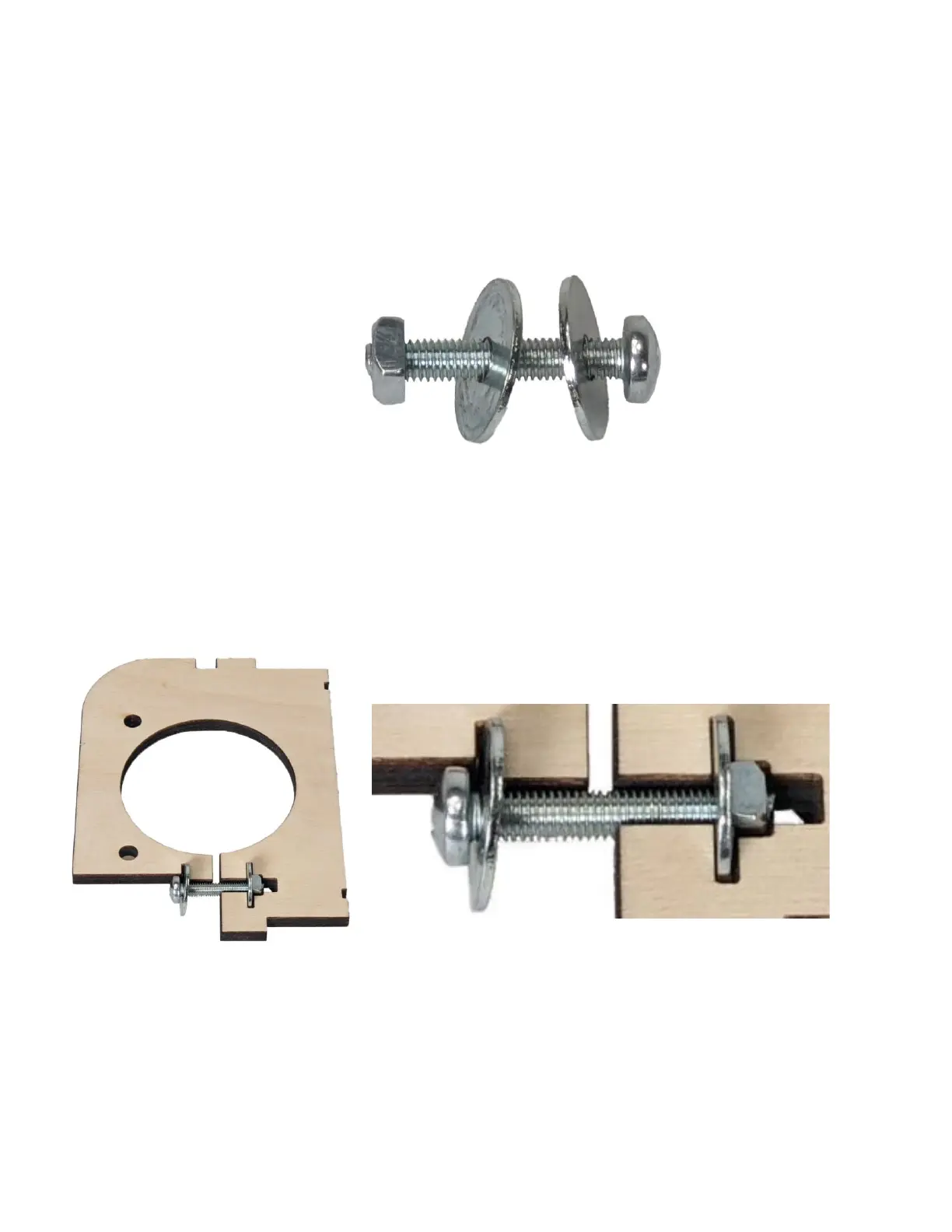

Step 2a Slide the two Idler Fender Washers (H50) onto

the M5 x 30 Machine Screw (H48) and secure

with the M5 Square Nut (H93).

Step 2b Place the Screw, Nut and Washer Assembly

into the Inner Spindle Mount (QZ5). Be sure

the Square Nut and Washers are nested into

their slots, as shown.

Step 2c Position the Mid Spindle Mount (QZ6) over

the Inner Spindle Mount (QZ5), and the Screw,

Nut and Washer Assembly as shown.
