The Assembly stack can be oriented so that the slot for
securing the Router is located on either the left or right side
with the curved front corners facing you.

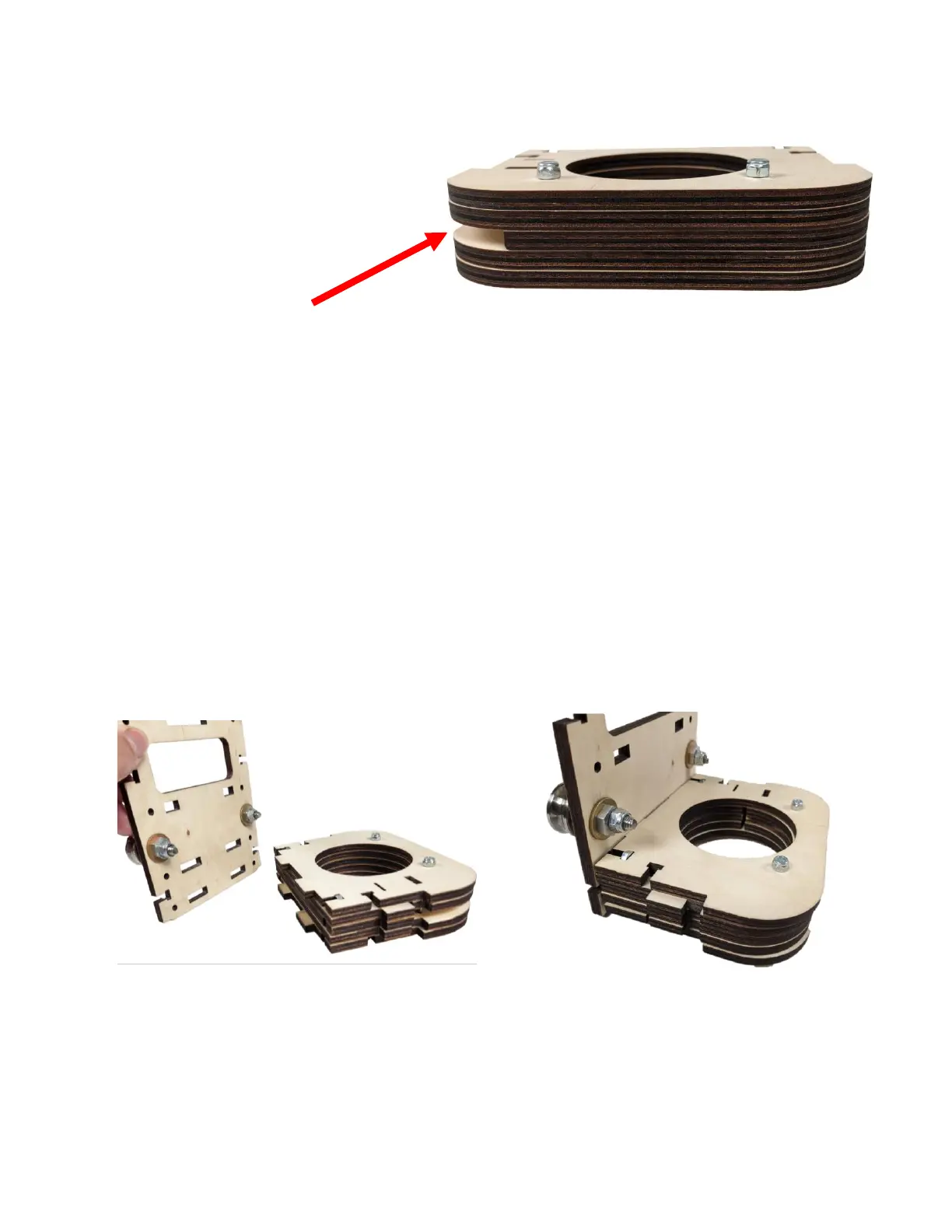

Step 2g Align the tabs of the stack with the slots in the
Back Frame Assembly and secure with four M4
x16 Machine Screws and Nuts. You may find it
helpful to set the two M4 Nuts in the top
before fully seating the tabs.
Adjustment Slot
