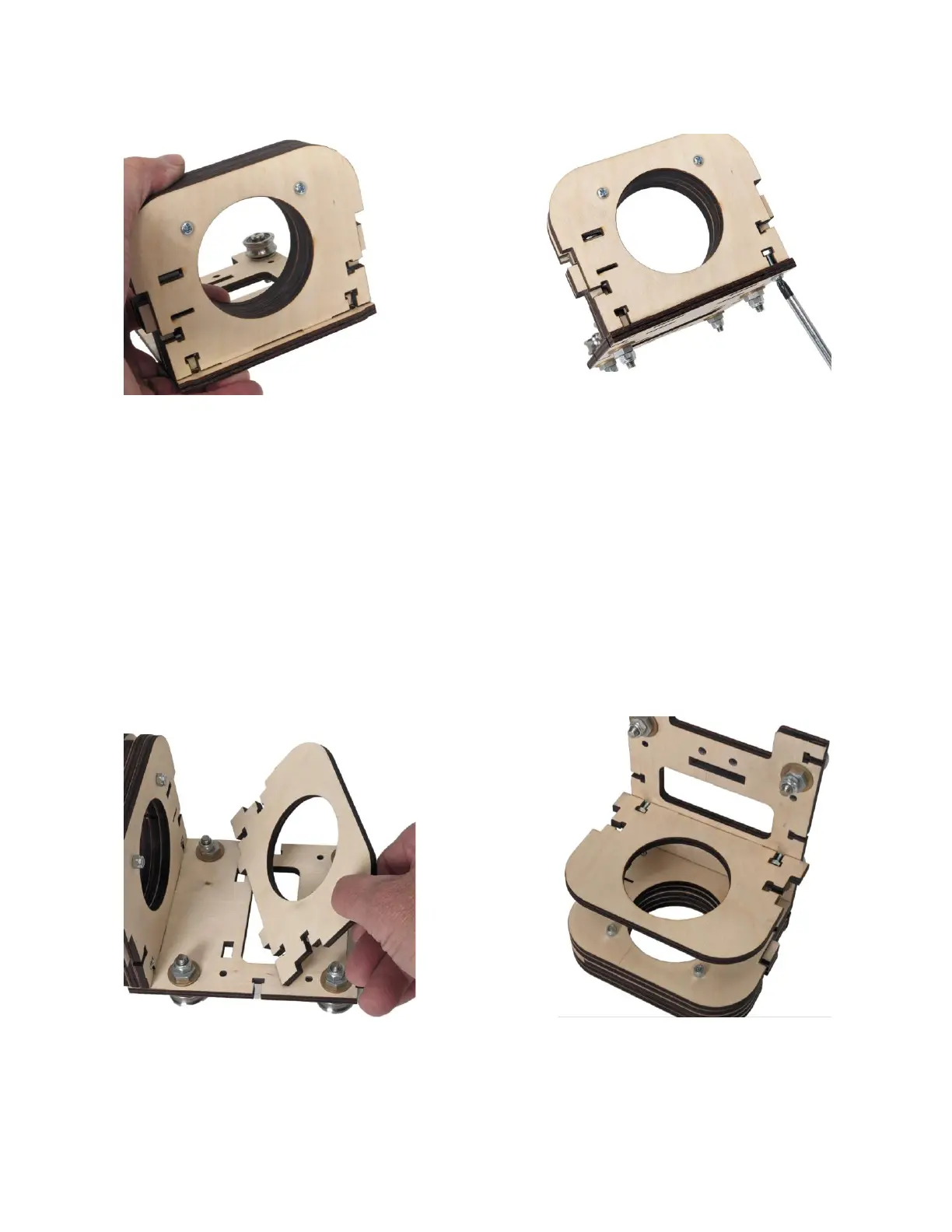

Step 2h Align the tabs of the Top Spindle Mount (QZ4)
with the slots in the Back Frame Assembly and
secure with two M4 x 16 Machine Screws and
Nuts as shown.
