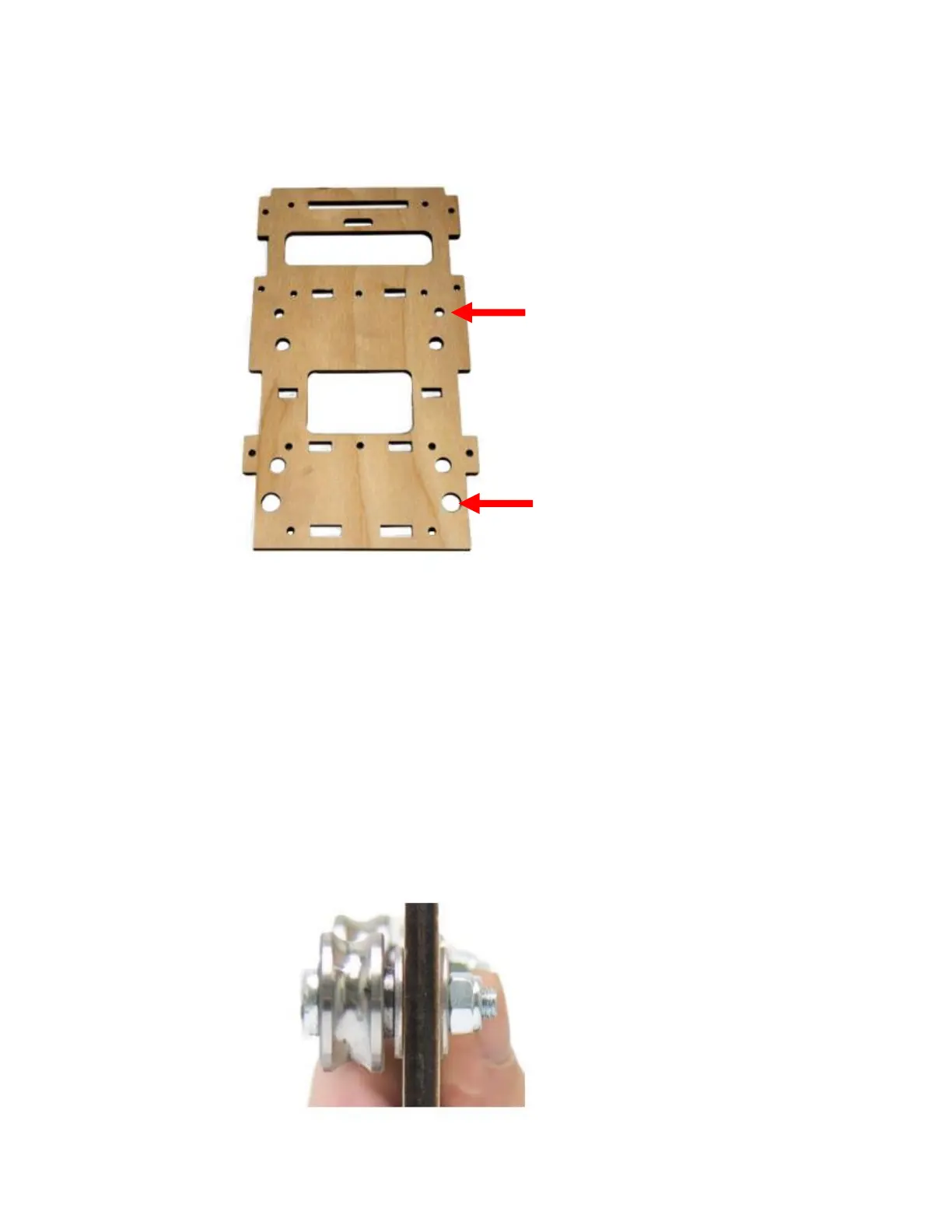

Step 1 Installing the Upper and Lower Bearings

Step 1a

Install the two Upper SG20U Bearing Assemblies for

the Carriage Frame (QY4). The assembly order for

the Upper Bearing: M6 x 35 Machine Screw (H95),

SG20U Bearing(H44) with hub facing toward the

Bearing Fender Washer, then the Bearing Fender

Washer (H42), Plywood, Bearing Fender Washer

(H42) secured with a M6 Lock Nut (H18) as shown.

Mounting Holes for Upper Bearings

Holes for Lower Mounting Bearings
