Step 1b

Install the two lower SG20U Bearings for the Y

Carriage Assembly as shown. The assembly order for

the Lower Bearings: M6 x 35 Machine Screw (H95),

SG20U Bearing (H44) hub facing toward the Bearing

Fender Washer, Bearing Fender Washer (H42),

Plywood, Eccentric Washer (H41), Eccentric Spacer

(H40) secured with a M6 Lock Nut (H18).

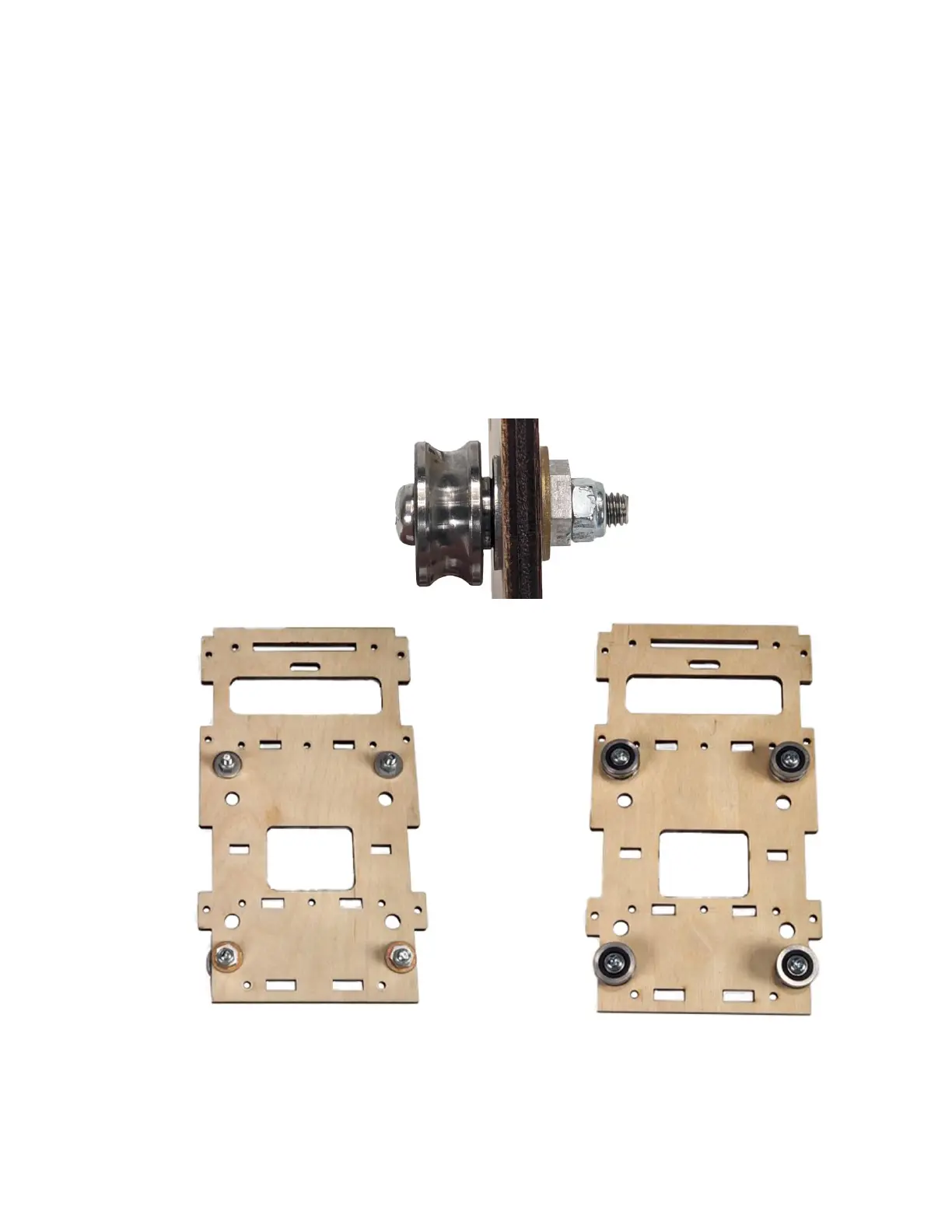

Carriage Frame Front View

Carriage Frame Rear View
