Step 2 Building the Y Carriage Assembly

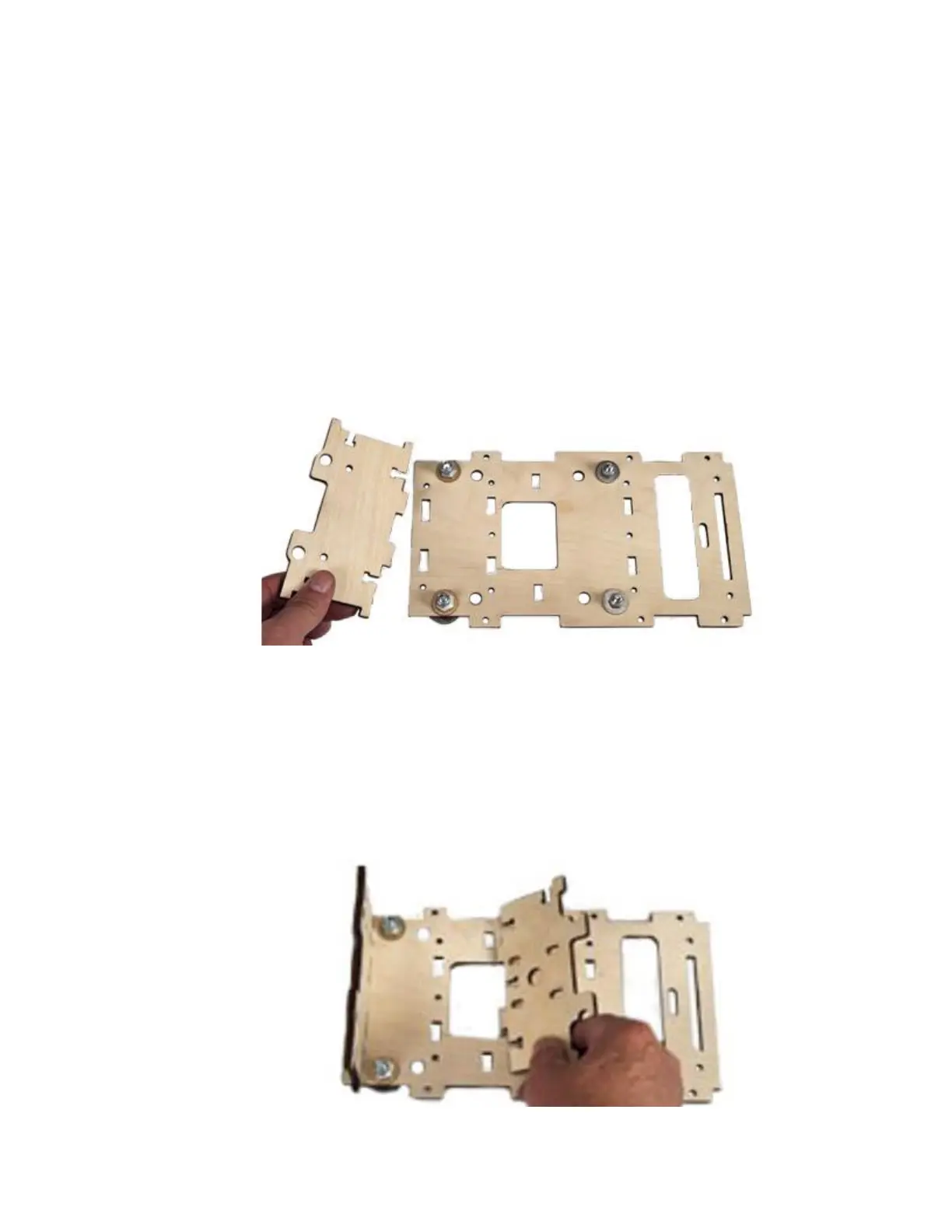

Step 2a With the Bearings facing down, align the tabs

of the Carriage Bottom Support (QY7) with the

slots at the bottom of the Y Carriage Assembly

and secure with two M4 x 16 Machine Screws

and Nuts.

Step 2b Align the tabs of the Outer Rail Support (QY8)

with the slots located below the opening in

the Y Carriage Assembly and secure with three

M4 x 16 Machine Screws and Nuts.
