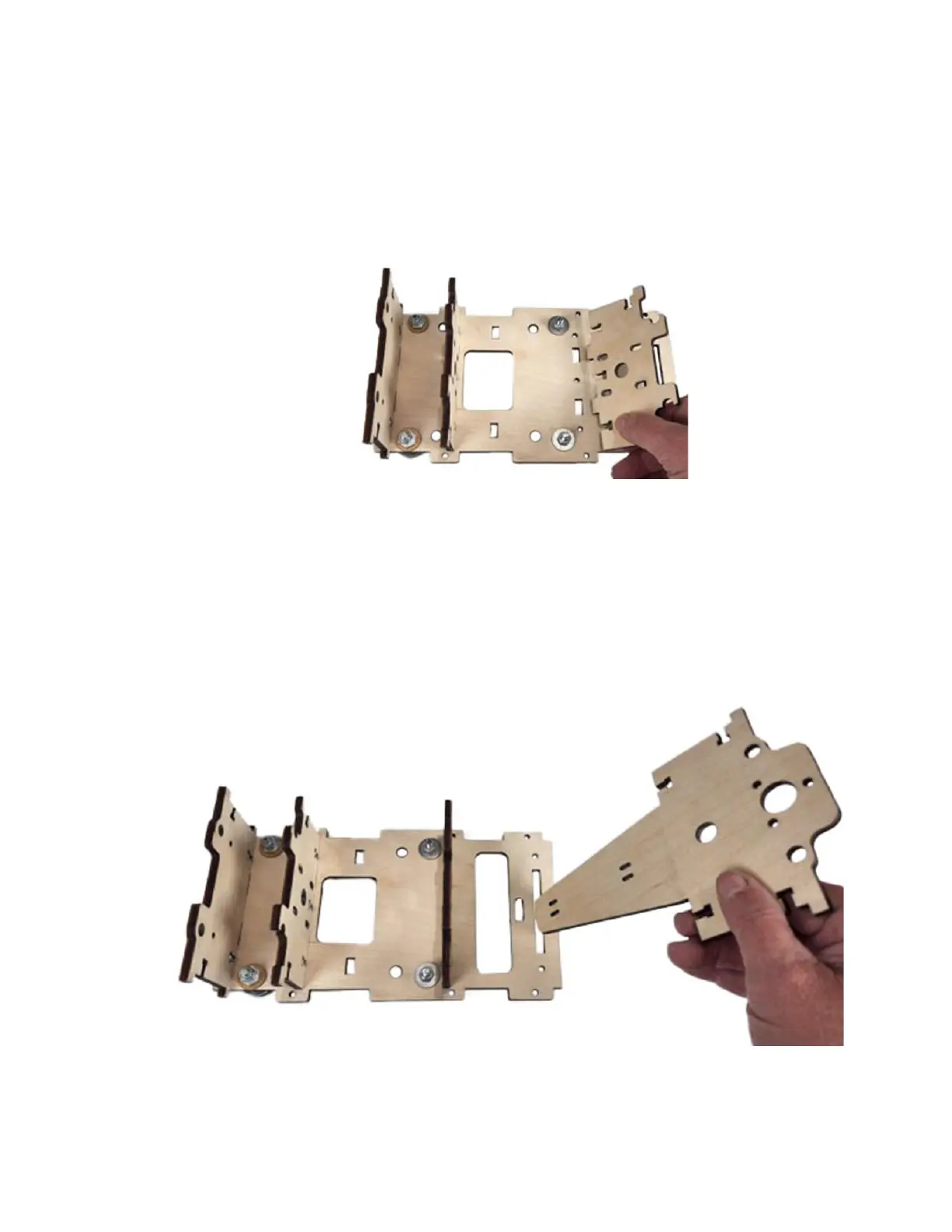

Step 2c Align the tabs of the remaining Outer Rail

Support (QY8) with the next set of slots above

in the Y Carriage Assembly and secure with

three M4 x 16 Machine Screws and Nuts.

Step 2d Slide the narrow tongue of the Carriage Top

Support (QY2) through the long narrow slot at

the top of the Y Carriage Assembly as shown.

Secure with two M4 x 16 Machine Screws and

Nuts.
