77

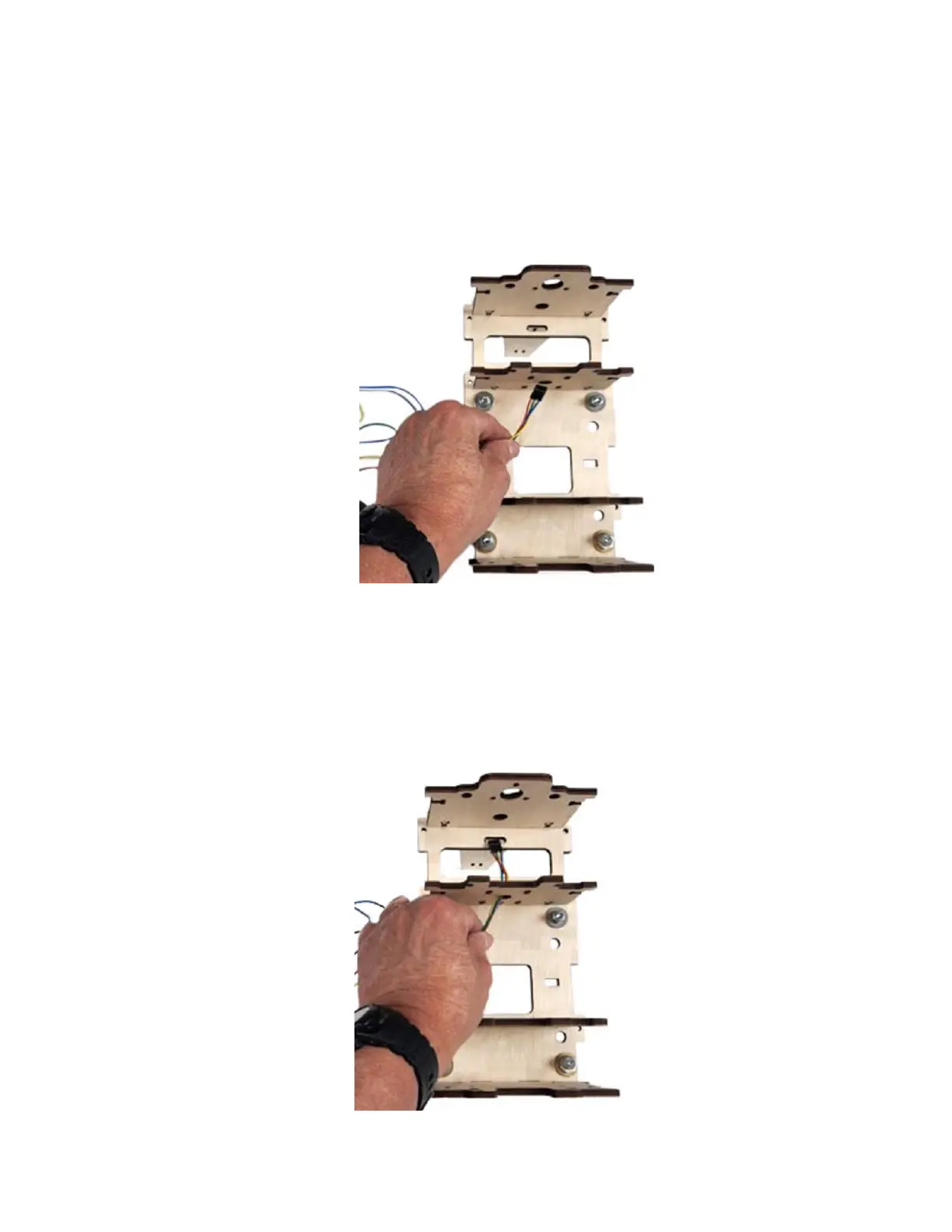

Step 2e Carefully thread the Dupont Connector and
the Stepper Motor wires of the Y Stepper
Motor Assembly through the upper Outer Rail
Support middle hole.
Continue threading the wires through the
rectangular hole just beneath the Carriage Top
Support.
