BobsCNC QUANTUM MAX User Manual

80

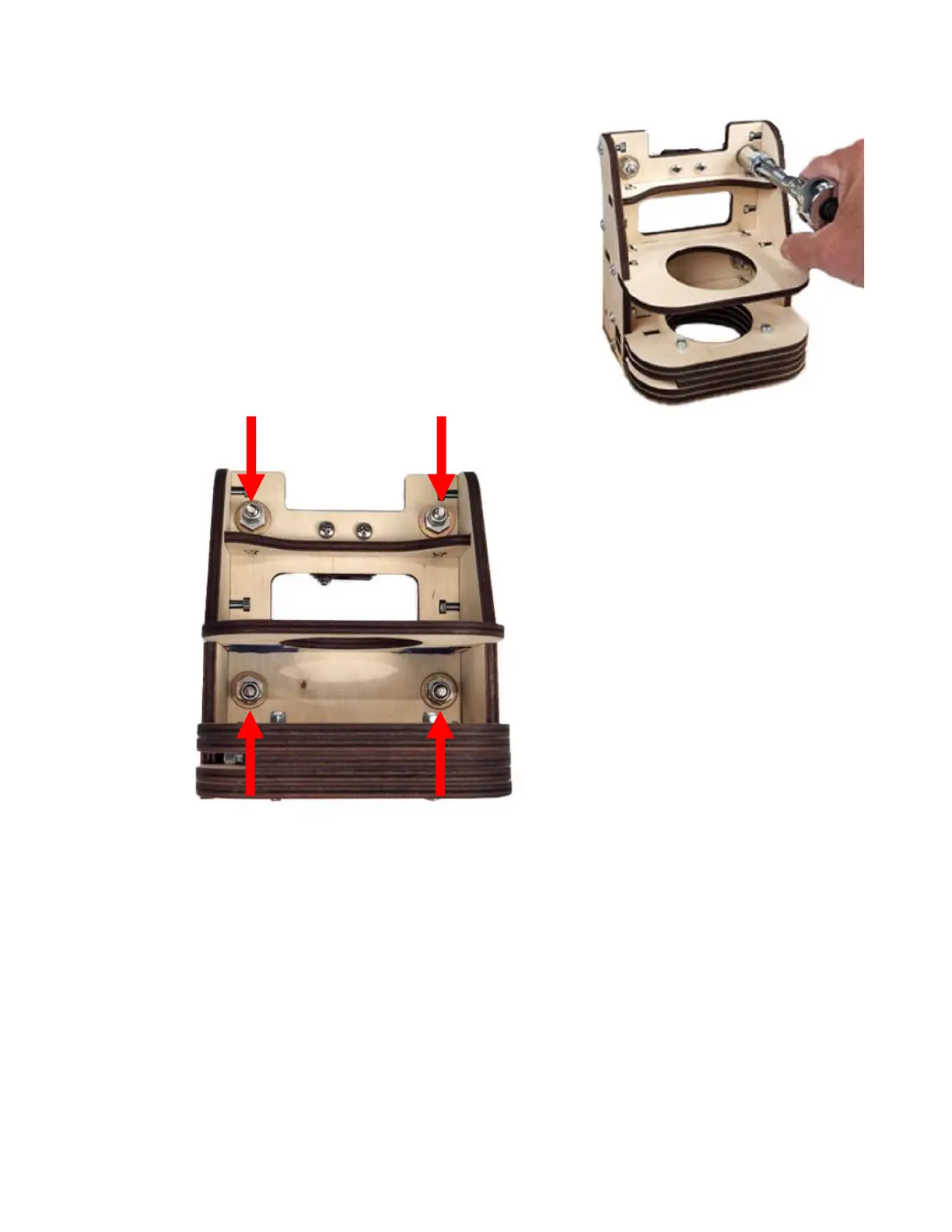

Step 3a With the Locknut firmly
snugged against the
face of the Eccentric
Spacer, use a 13mm
socket to turn just the
Eccentric Spacer as
shown.
IMPORTANT
Make sure the points
on the wide edge of
the Eccentric Spacers
of the upper bearings
are pointing down
and the wide point of
the lower Eccentric
Spacers are pointing
up as shown.
