88
Step
6c

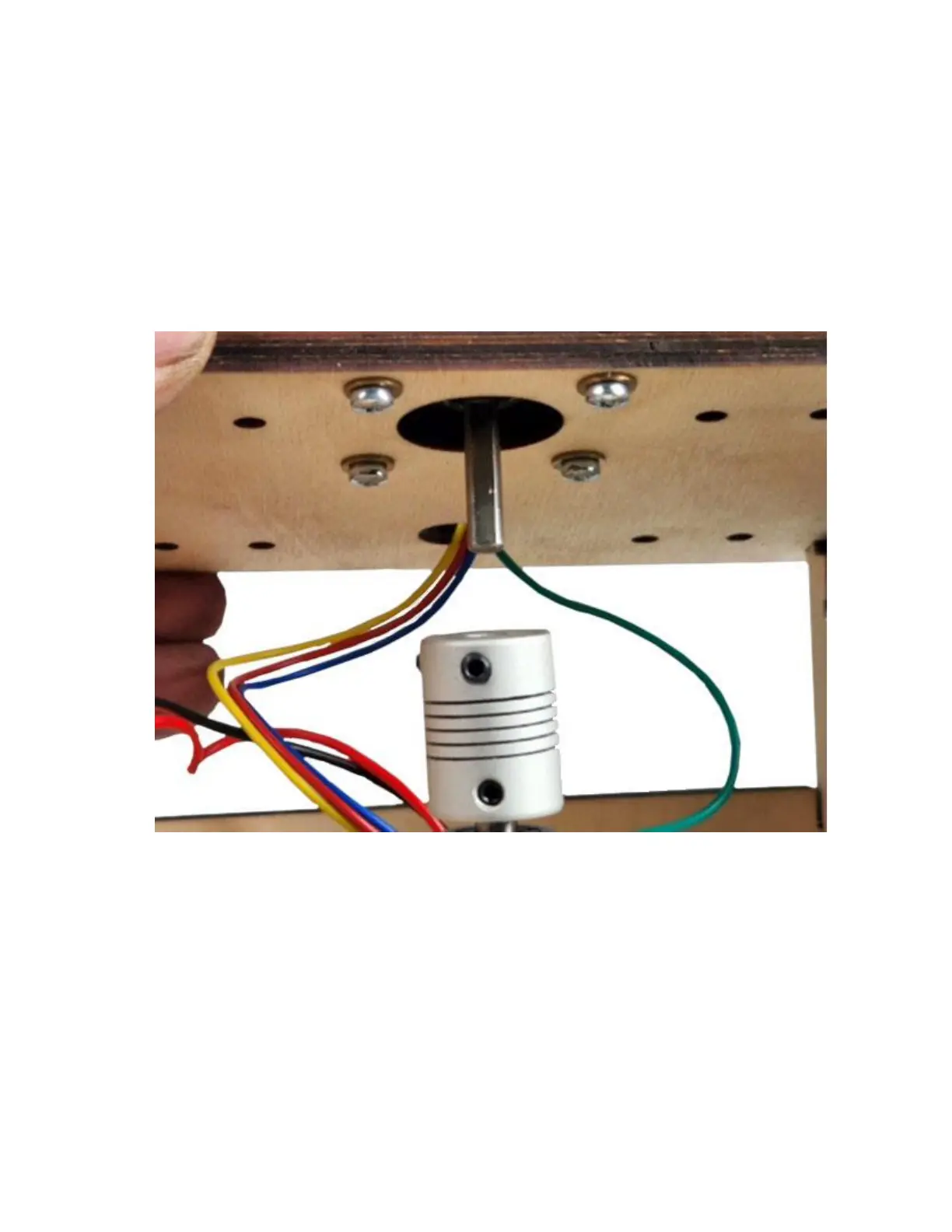

Before aligning the tabs of the Carr
iage
Frame Assembly with the slots in the Z
Stepper Motor Mount, make sure that
the flat of the Stepper Motor shaft lines
up with a Set Screw in the Aluminum
Helical Coupler as shown.
