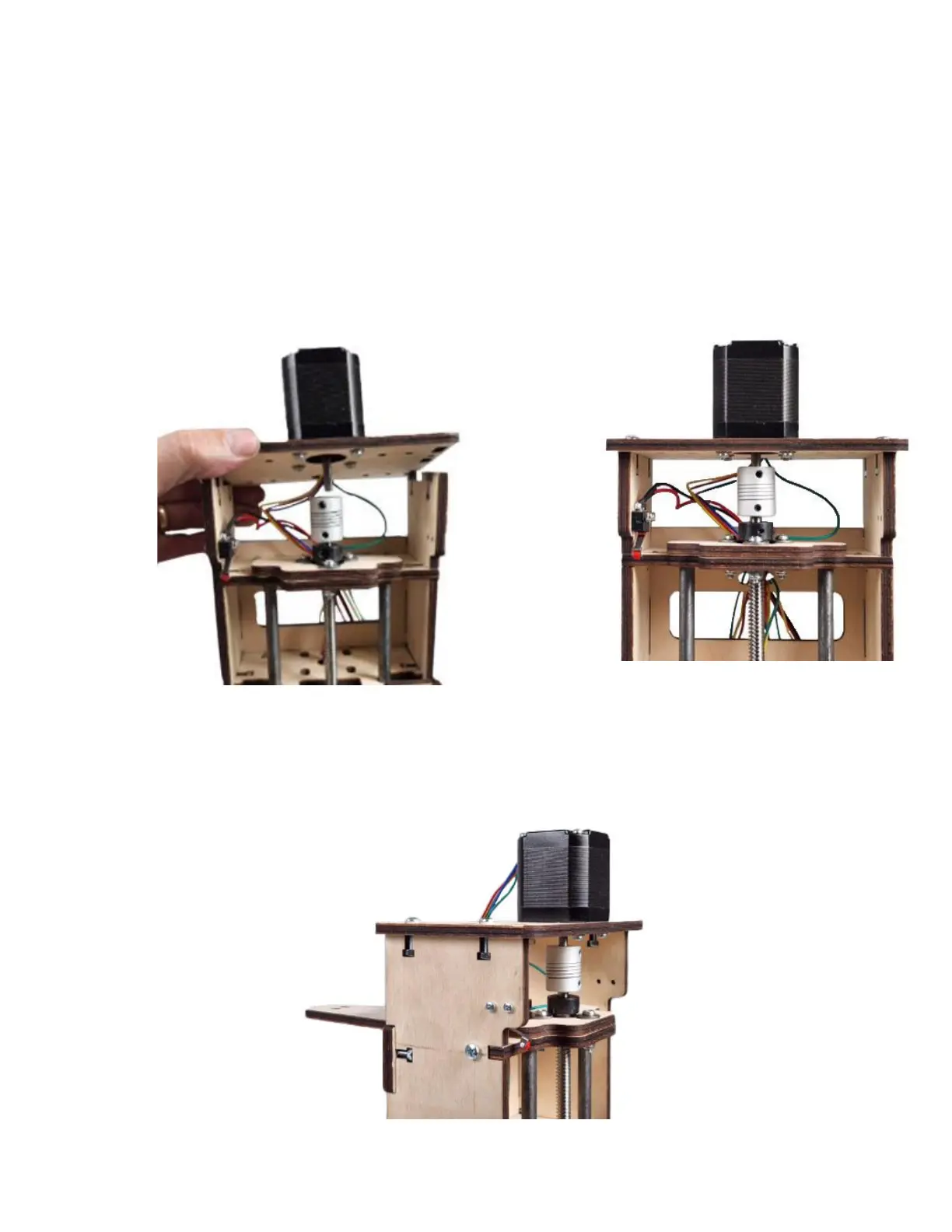

Step 6d Carefully slide the Stepper Motor Shaft

into the Aluminum Helical Coupler. Then

fit the tabs of the Carriage Frame

Assembly into the slots in the Z Stepper

Motor Mount and secure with four M4 x

16 Machine Screws and Nuts.

Step 6e Carefully tighten both set screws on the

Aluminum Helical Coupler against the

Stepper Motor Shaft.
