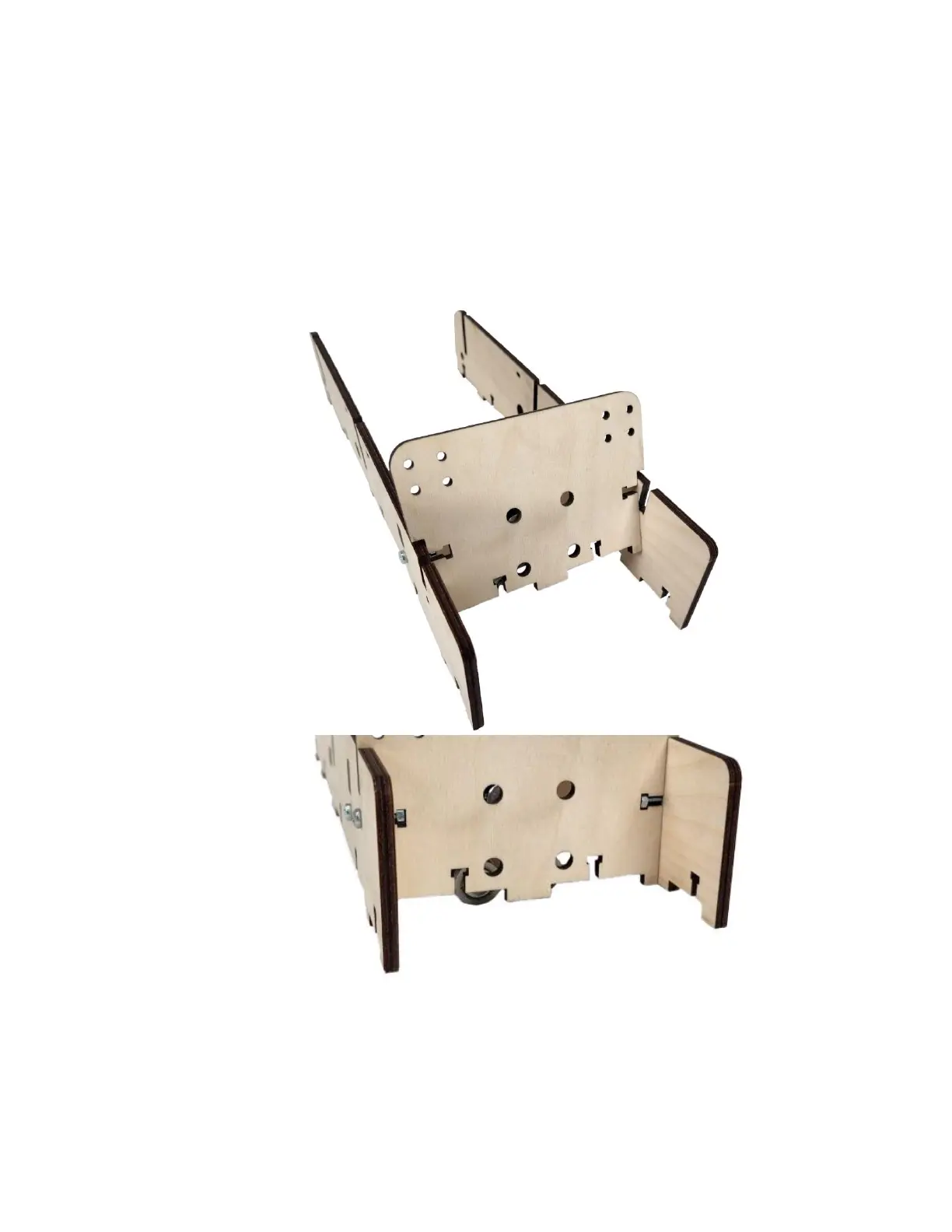

Step 1c Align the tabs of the Gantry Lower Side Brace
(QG10) and slide them into the slots in the
Assembly as shown. Secure with two M4 x 16
Machine Screws and Nuts.
