BobsCNC QUANTUM MAX - Page 96

95

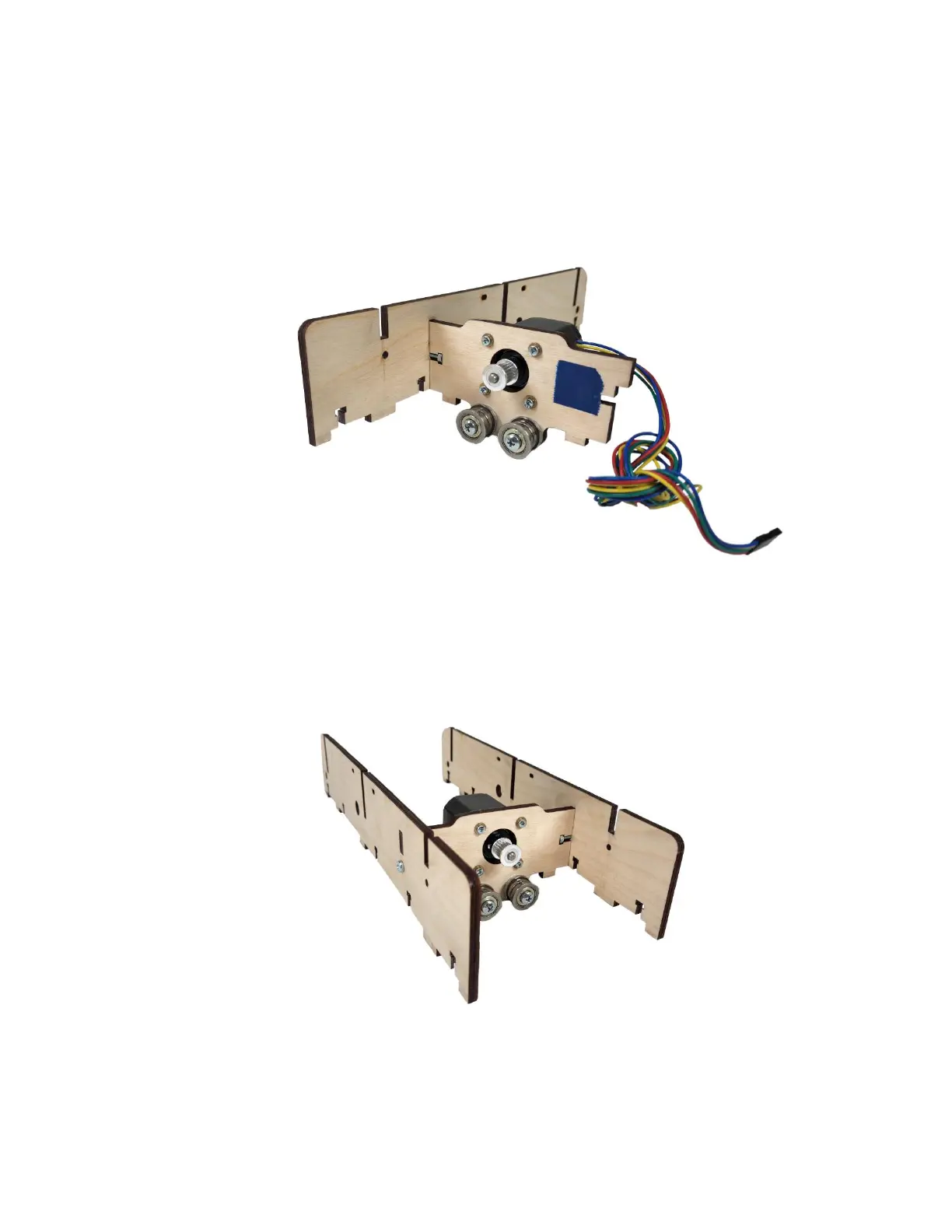

Step 1b Align the tab of the Stepper Motor Mount
Assembly with the slot in the Gantry Side.
Support and secure with one M4 x 16 Machine
Screw.
Repeat to install the other Gantry Side
Support. Remove the tape after tightening.
