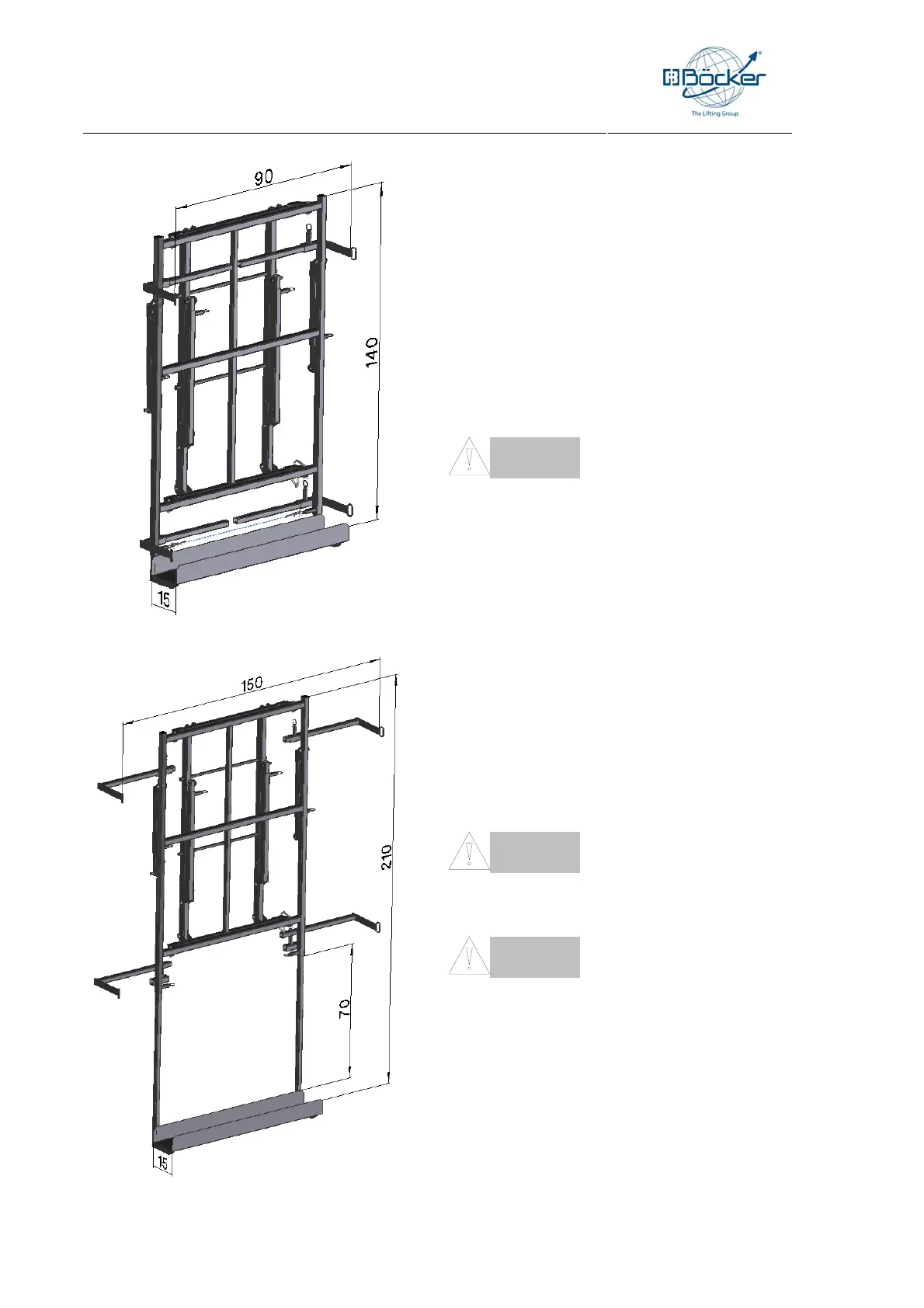

picture 5-9.2
After the sheet transport bed with adjustable inclination
has been safely hung into the carriage (standard or tilt
carriage), it is in basic position (picture 5-9.2).
In its basic position with the dimensions:
90 x 140 x 15 cm,
the sheet platform bed can be used with a maximum
load of 150 kg. In this case the lateral extensions (6)
and the floor extension (5) are not extended or length-
ened.
WARNING !
Snap pins must be engaged before material transport.
The material is secured by the chains provided by the
manufacturer.
After the extensions integrated into the floor and sides
are used (Fig. 5-9.3), the sheet transport bed with ad-
justable inclination can transport loads up to a maxi-
mum of 100 kg.
The extensions can be pulled out to their maximum po-
sition by removing the snap pins.
WARNING !
Snap pins must be engaged before material transport.
WARNING !
The floor extraction is not mechanically limited!
Maximum extension is 70 cm.
picture 5-9.3
The maximum dimensions of the extended sheet
transport bed are:
150 x 210 x 15 cm
The material is secured by the chains provided by the
manufacturer.
