Toplift / Toplift ECO
23 92023200095

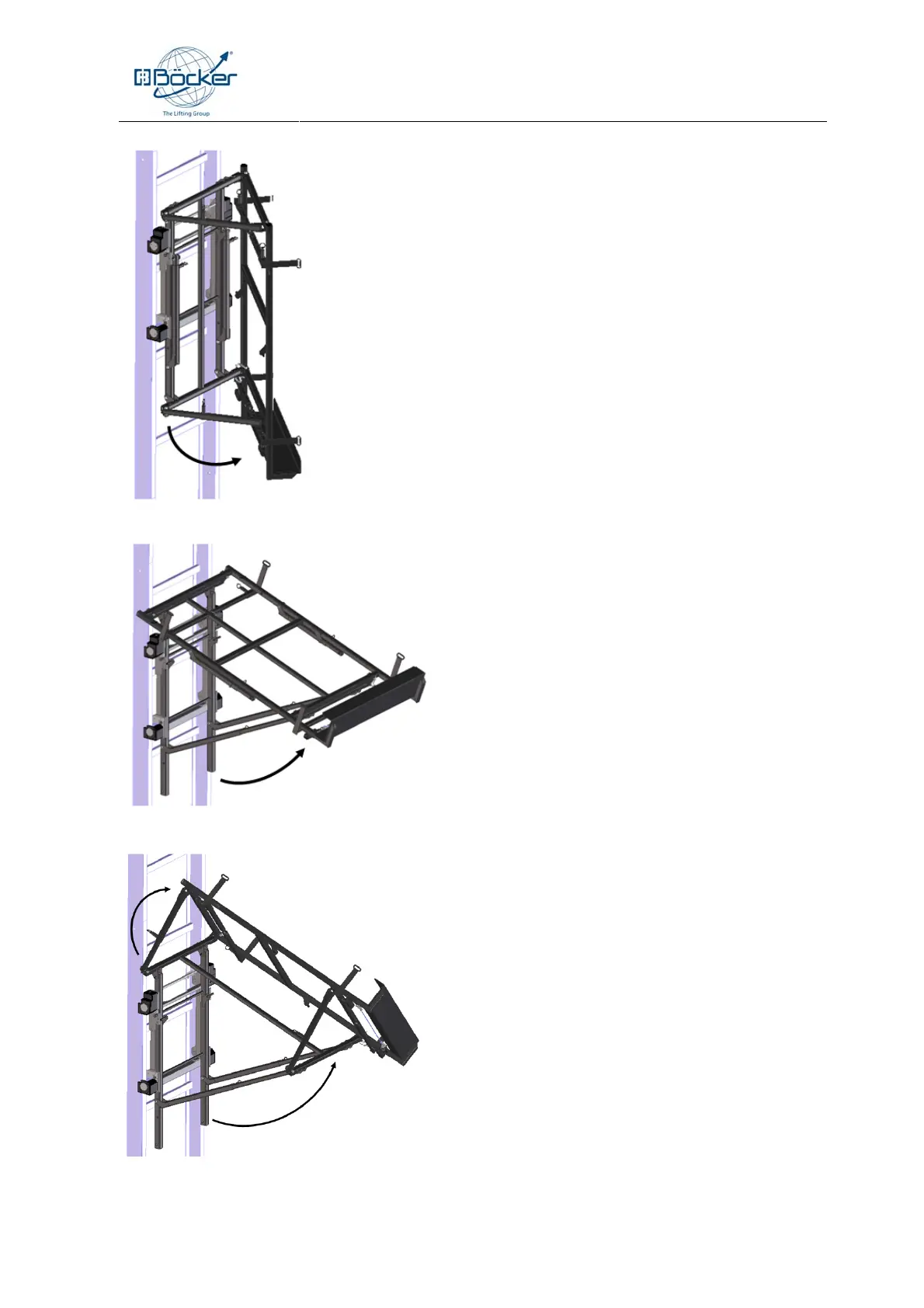

picture 5-9.4
The sheet transport bed with adjustable inclination can
be turned by up to 45° in its first inclination option (pic-
ture 5-9.4). The supports are secured by means of the
bolted connection. The smaller supports (3) with a
length of 21 cm serve in this position to support the up-
per frame (1).
picture 5-9.5
In the second inclination option (picture 5-9.5) the up-
per frame (1) is held using the long supports (4) and
the bolted connections. The upper frame (1) stands at
a maximum angle of 70° to the base frame (2).
picture 5-9.6
In the third position (picture 5-9.6) of the sheet trans-
port bed, the upper frame (1), on which the material to
be transported is retained, is secured using the bolted
connections in the 45° and 70° inclination.
