S2000M MAINTENANCE GUIDE
17
c) connect next device and by identical way set another network address, different from
first one;
d) by this way connect the rest devices, setting unique addresses.
PKU – console "С2000М";
PKP – alarm panel;
IP – UPS 12V/24V.
620 Om
PKU
PKP PKP PKP
620 Ом
below 3000
m
IP IP IP
IP
"RS-485
(
A
)
"
"RS-485
(
B
)
"
"0 V"

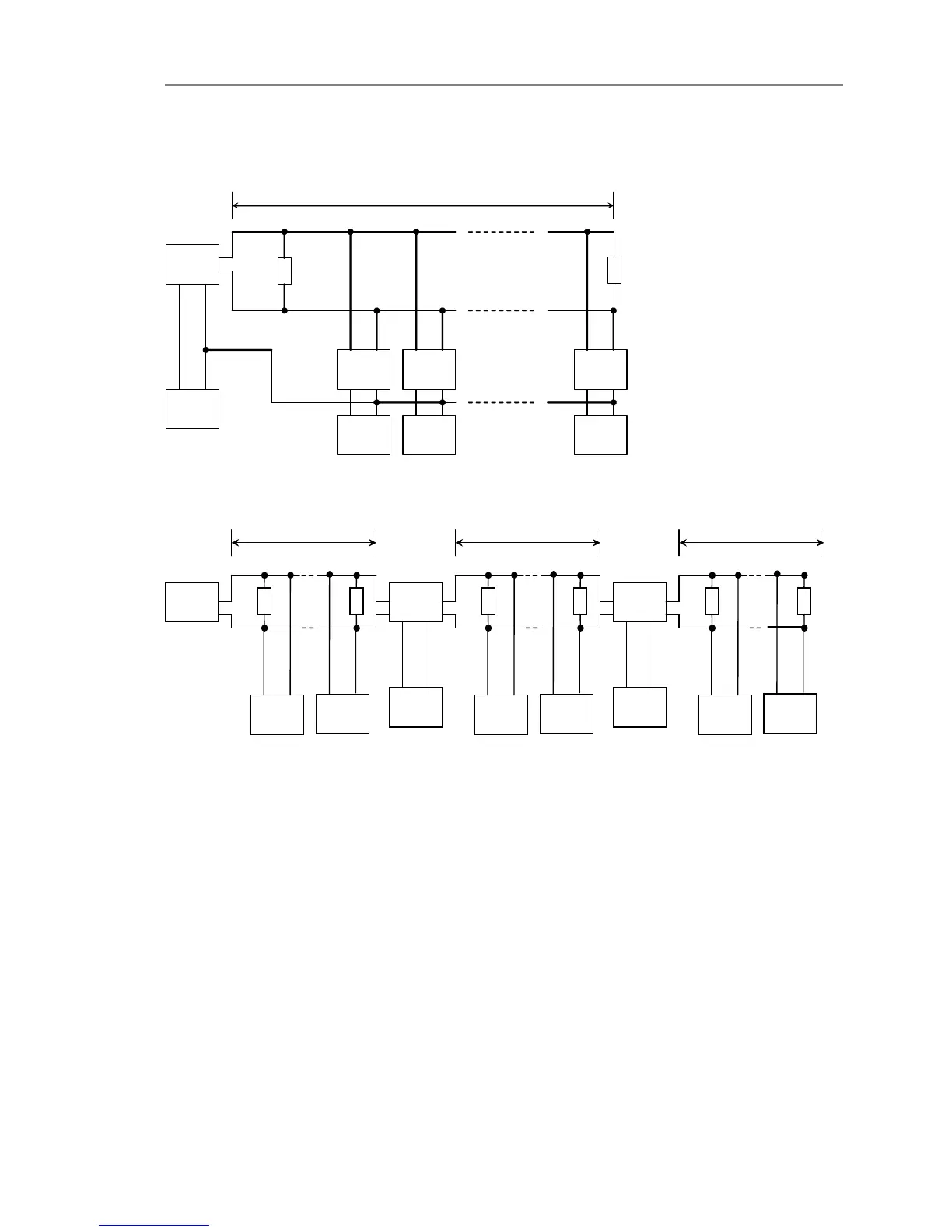

Figure 2 Device RS-485 interface connection circuit.
PKU – console "S2000M";
PKP – alarm panel;
P – interface repeater;
PKU
P
P
Below 2000
m
Below 2000
m
Below 2000
m
IP IP
PKP
PKP
PKP
PKP
PKP
PKP
R
R
R
R
R
R
IP – power supplier;
R – matching resistance 620 Ohm.
Figure 3 Extend line length with the help of RS-485 interface repeaters
