Properly reinstall removed parts in the
reverse order of their removal.

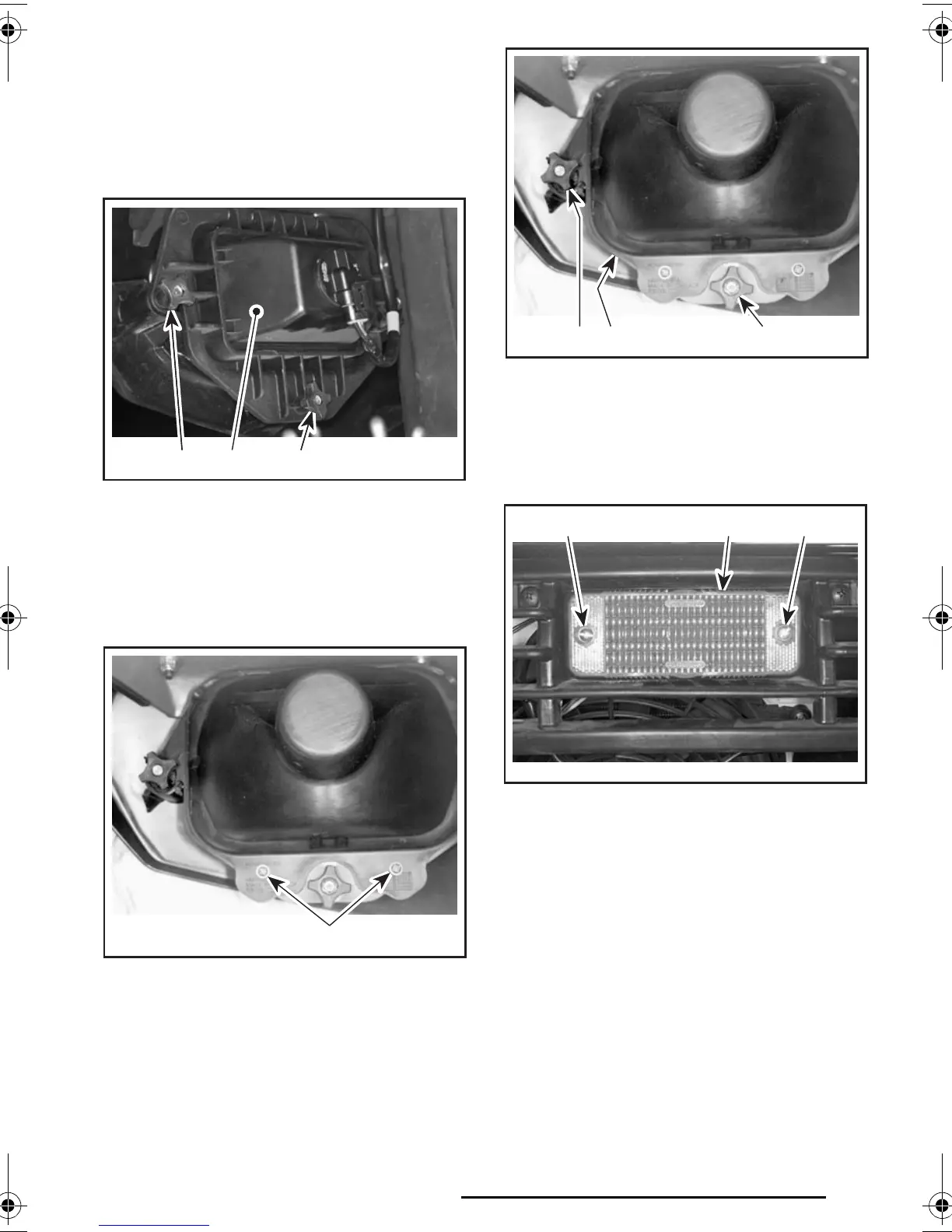

Adjust beam aiming as follows:
Turn knobs to adjust beam height and
side orientation to your convenience.
Adjust both headlamps evenly.
1. Headlamp cover
2. Beam height adjustment
3. Beam side adjustment
Traxter MAX Series
Lift sealed beam cover then remove
sealed beam.
1. Remove screws and lift up the sealed beam
cover
Properly reinstall removed parts in the
reverse order of their removal.
Adjust beam aiming as follows:
Turn knobs to adjust beam height and
side orientation to your convenience.
Adjust both headlamps evenly.
1. Headlamp
2. Beam height adjustment
3. Beam side adjustment
Taillight
Unscrew lens screws to expose bulb.
1. Lens
2. Screws
Push bulb in and hold while turning
counterclockwise to release.
Install the new bulb by first pushing in
while turning clockwise.
Indicator Light
If one LED is burnt in the indicator light
cluster, see an authorized Bombardier
ATV dealer for replacement of the light
cluster.
1
V04G02Z
3 2
V01A02Z
1
V01A02Y
213
V01L0HY
12
2
