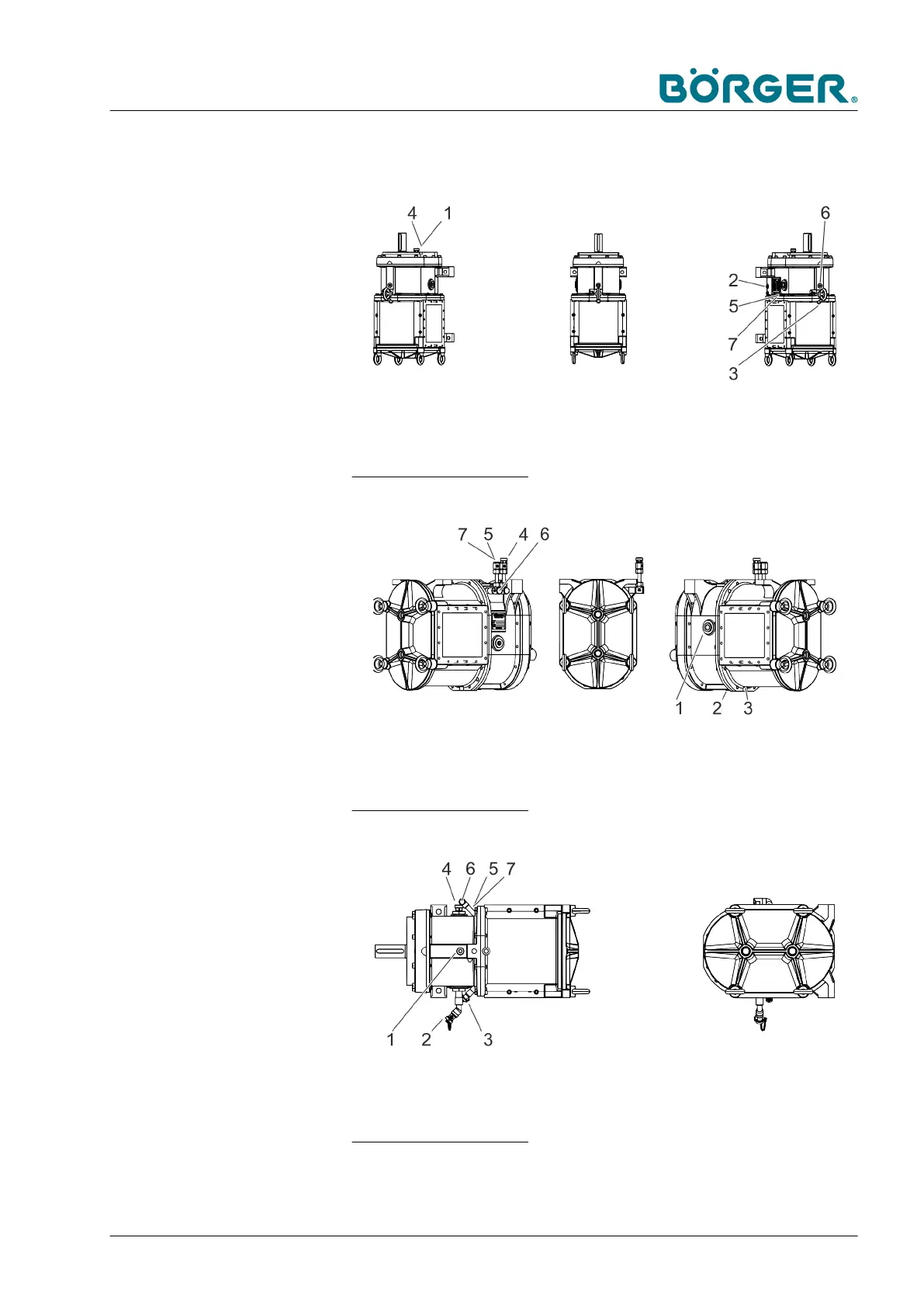

Vertical, quick-release cover at bottom, feet at side, vertical shafts,
drive shaft pointing upwards
Fig. 4: Example: Classic FL series
Mounting position M3
Upside-down, feet upwards, horizontal shafts
Fig. 5: Example: Classic FL series
Mounting position M5
T
urned 90° to the left, feet to the right, horizontal shafts
Fig. 6: Classic FL series
Mounting position M6
T
urned 90° to the right, feet to the left, horizontal shafts
Product Description
