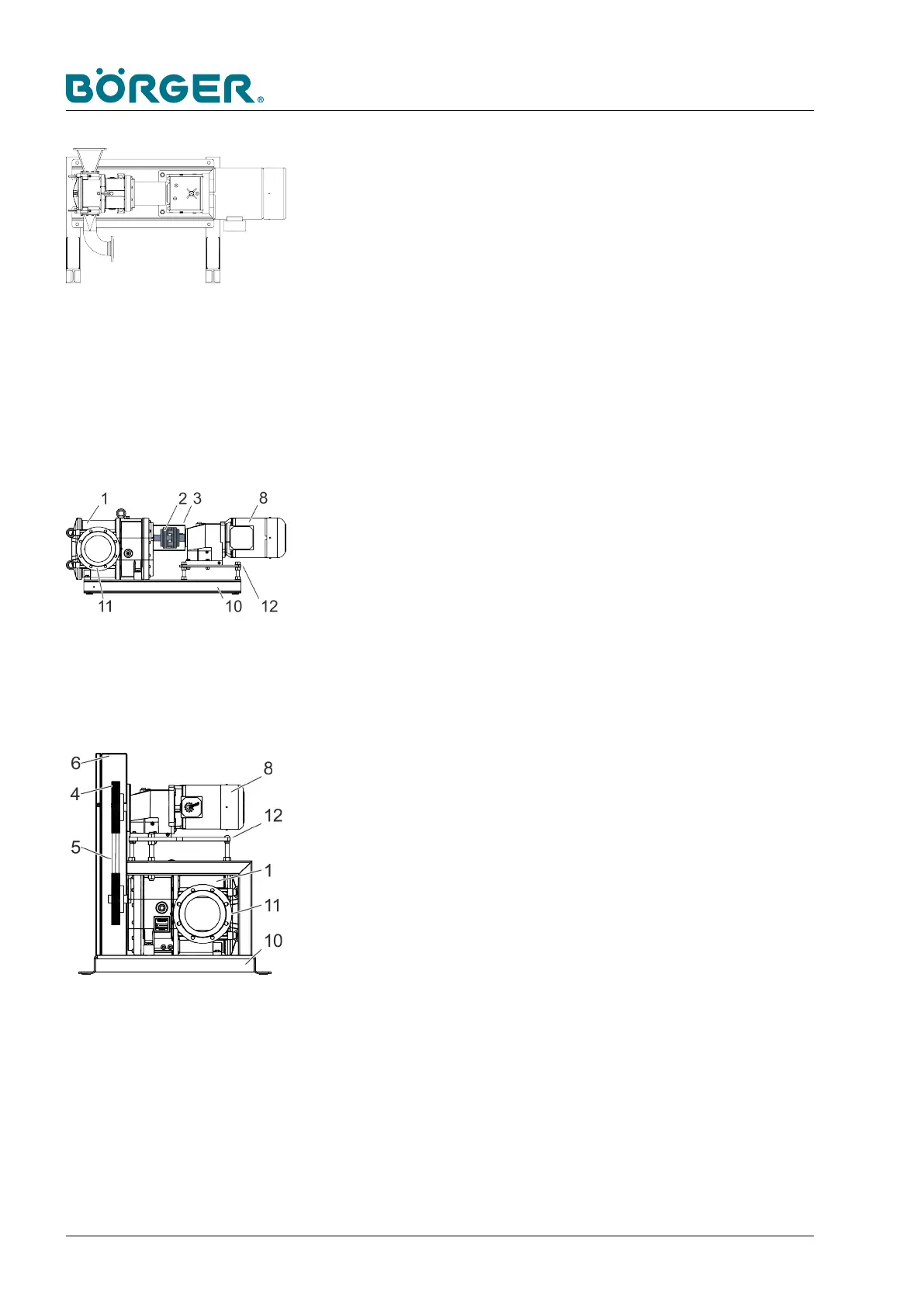

— Intake hopper on the inlet
—
For highly viscous but still fluid material, a 90° turned
Börger machine can be equipped with an intake hopper on
the inlet instead of a pipe connector
3.1.9 Units / drive options
The majority of Börger machines are delivered as a complete unit,
i.e. with mounted drive fixed on a base frame.
The most common unit variations are as follows:
Standard unit
1 Börger-Rotary lobe pump
2 Torsionally flexible coupling
3 Coupling guard
8 Drive (with gear reducer in this example)
10 Base frame
11 Pipe connector (short, straight pipe connector with flange in
this example)
12 Motor plate
Overhead mounted drive assembly (piggyback)
1 Börger-Rotary lobe pump
4 V-belt pulley / chain drive
5 V-belt (up to five belts, depending on the drive) or chain drive
6 V-belt/chain guard
8 Drive (with gear reducer in this example)
10 Base frame
11 Pipe connector (short, straight pipe connector with flange in
this example)
12 Motor plate
Product Description
BA-Classic FL_en-US, 03.05.2018www.boerger.de / www.boerger.com46
