Dimensions approx. [mm] approx. [inch]
FL 518 FL 776 FL 1036 FL 518 FL 776 FL 1036
P G½ G½ G½ G½ G½ G½
ØQ 19 19 19 0.75 0.75 0.75
R 234 234 234 9.21 9.21 9.21
approx. [kg] approx. [lb]
FL 518 FL 776 FL 1036 FL 518 FL 776 FL 1036
Weight 307 333 338 677 734 745
The pipe connectors are designed according to the dimensional
drawing created for the order
. We deliver short, straight pipe con-
nectors as standard, with flanges (selectable) according to:
— DIN EN 1092-1, type 11
— ANSI/ASME B 16.5 RF Class 150.

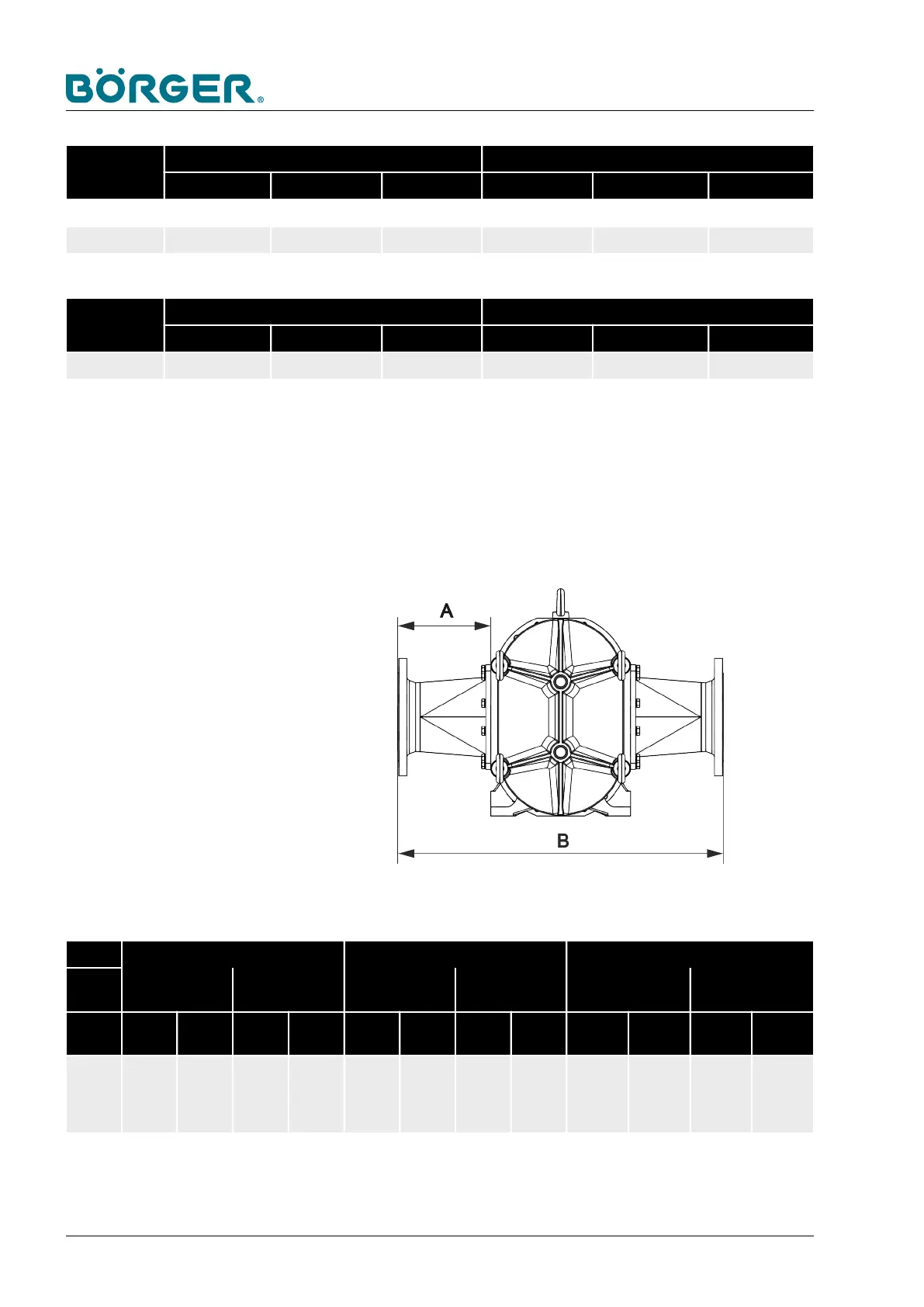

Dimensions A and B in [mm] (approx.)
FL 518 FL 776 FL 1036
Stand
ard:
DIN / DIN EN ANSI / ASME DIN / DIN EN ANSI / ASME DIN / DIN EN ANSI / ASME
Dimen
sion:
A B A B A B A B A B A B
Nom-
inal
diam-
eter:
DN
100
(4")
206 752 230 800 206 752 — — — — — —
Pipe connectors
Product Description
