1)
12 bar (174 psi) subject to agreement
2)
8 bar (116 psi) subject to agreement
3)
6 bar (87 psi) subject to agreement

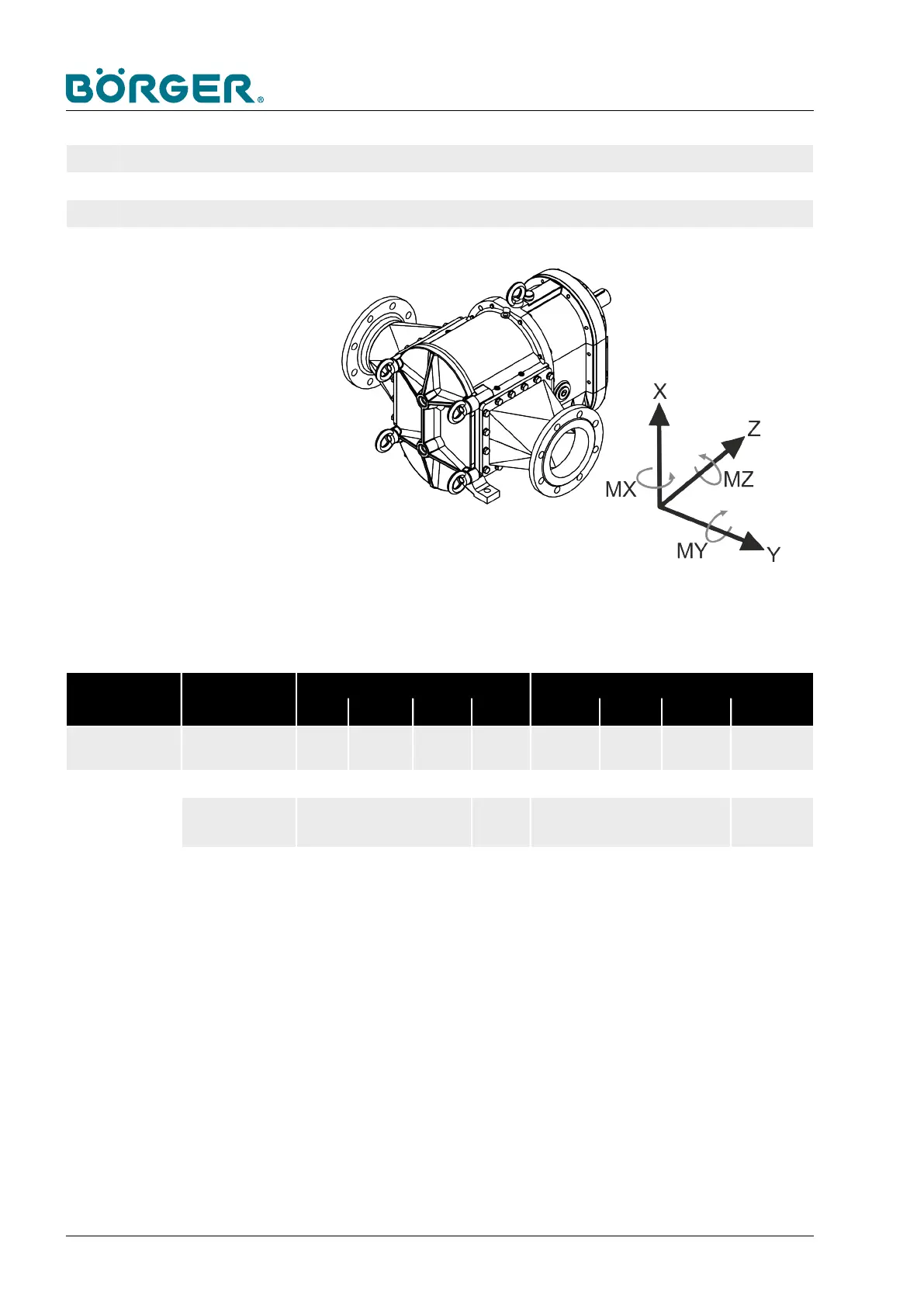

Fig. 8: Example: Classic FL
Forces and torques on metal pipe connectors (short, straight pipe connectors)
Value:
Pipe nominal
diameter (mm)
Forces N max Torques Nm max
F
x
F
y
F
z
F
(total)
M
x
M
y
M
z
M
(total)
Valid for Börger
machine
100, 125, 150,
200, 250
7000 9200 7000 13514 1500 1300 1800 2680
For comparison:
Specification
acc. to EN
14847
200 930 1320 500 735
250 1140 1620 625 920
The values Fx, Fy and Fz as well as Mx, My and Mz may never be
used simultaneously as maximum values.
The specified values are calculated, and may deviate in practice
due to casting tolerances and structural changes. It is therefore
recommended not to exceed the limits specified in terms of EN
ISO 14847 for rotary positive displacement pumps, pipe diameter
200 or 250 mm, wherever possible.
Pipe connections
Product Description
