32 en | Planning AVENAR panel
2022-07 | 5.0 | F.01U.378.910
System manual
Bosch Sicherheitssysteme GmbH
i
Notice!
- From LSN module software version 1.0.35 onward, you can operate LSN improved elements
and LSN classic elements in combination in a loop or in a stub.
- If an LSN classic element is present, only 127 elements can be used in the loop.
- T-tap topologies are only possible if only LSN improved elements are used. As soon as an
LSN classic device is in a loop or stub, T-taps are no longer possible.

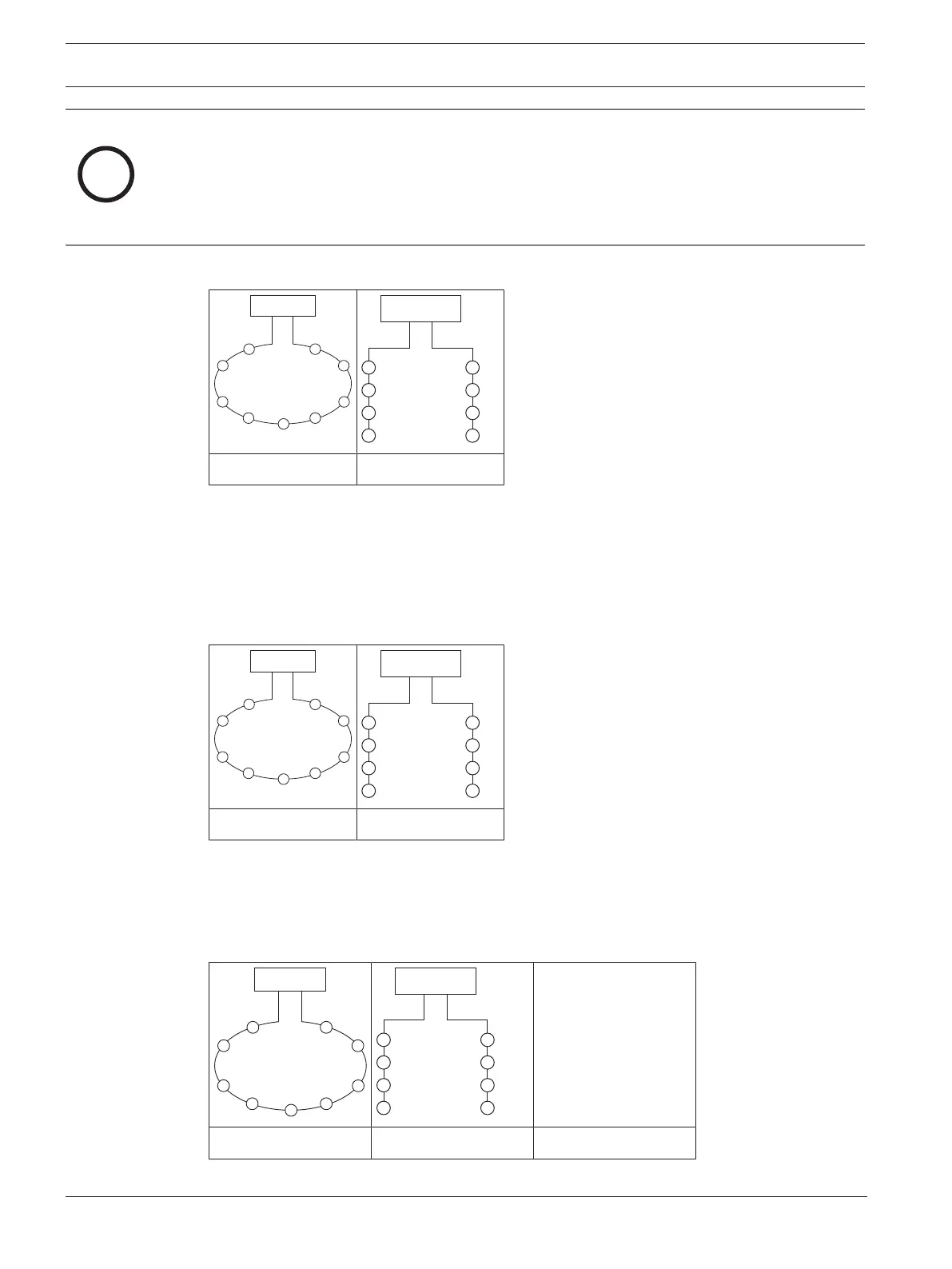

Topologies in LSNimproved with automatic address setting
LSN 0300 A
LSN 1500 A
LSN 0300 A
LSN 1500 A
Loop Stub
Table3.4: Topologies in LSN improved with automatic address setting
Stub topology
Each LSN element provides a built-in isolator between the b1 and b2 connectors. The current
flows through the LSN element between b1 and b2. Therefore, the last element of the stub
has only incoming but no outgoing cable. Unlike for the loop topology, the direction of the
current flow remains the same.
LSN 0300 A
LSN 1500 A
LSN 0300 A
LSN 1500 A
Loop Stub
Table3.5: Topologies in LSN classic
T-tap topology
In a T-tap topology one or several branches exist anywhere along the LSN line.
Topologies in LSNimproved with manual address setting (T-tap)
LSN 0300 A
LSN 1500 A
LSN 0300 A
LSN 1500 A
Loop Stub
